MECHANICAL PARTS LIST 1 / 1
REF. NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 A B C D E F G
PART NO.
KANRI NO. 8B-HX4-004-010 8B-HX6-002-010 8B-HX4-005-010 8Z-HX5-201-010 8B-HX4-007-010 8B-HX6-004-010 8Z-HX5-200-010 87-A91-891-010 87-A91-612-110 8B-HX6-001-010 8Z-HX5-014-010 8Z-HX5-013-010 8Z-HX5-012-010 8Z-HX5-016-010 8Z-HX5-020-010 8Z-HX5-017-010 85-TM5-205-010 85-TM5-203-010 85-TM5-204-010 8Z-HX5-003-110 8Z-HX5-019-010 8Z-HX5-015-010 8Z-HX5-006-010 8Z-HX5-018-010 SB-HX4-230-000 SB-HX4-220-000 8B-HX4-006-010 8Z-HX5-206-010 8Z-HX5-204-010 8Z-HX5-205-010 8Z-HX5-204-010 87-B10-048-010 87-B10-196-010 8Z-HX5-208-010
DESCRIPTION WINDOW,CASSETTE LID,CASSETTE M340 LENS,COUNTER SPR,CASS KNOB,SL MIC COVER, MIC HLDR,JACK MIC,ECM OBO-54LN-0B SPKR,DIA36 4OHM 0.4W CABI,FRONT BTN,CASS STOP BTN,CASS PLAY BTN,CASS REC KNOB,SL PAUSE LENS,LED KNOB,SL 1.2/2.4 SPR,BAT (-) SPR,BAT(+/-) SPR,BAT (+) CABI,REAR KNOB,SL V-SENSOR KNOB,SL FF/REW LID,BATT KNOB,SL SLOW/FAST HOLDER MIC 11-1 (RUBBER) HOLDER MIC 11-5-1 (RUBBER) LENS,BATT<AEZ> UT2+2-20 CR S VT2+2-6 CR S VT2+1.7-6 CR S VT2+2-6 CR S VT2+1.4-3 VT2+1.4-4<AEZ> UT2+2-20
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color B Black C Cream D Orange G Green H Gray L Blue LT Transparent Blue N Gold P Pink R Red S Silver ST Titan Silver T Brown V Violet W White WT Transparent White Y Yellow YT Transparent Yellow LM Metallic Blue LL Light Blue GT Transparent Green LD Dark Blue DT Transparent Orange GM Metallic Green YM Metallic Yellow DM Metallic Orange PT Transparent Pink LA Aqua Blue GL Light Green HT Transparent Gray
�9�

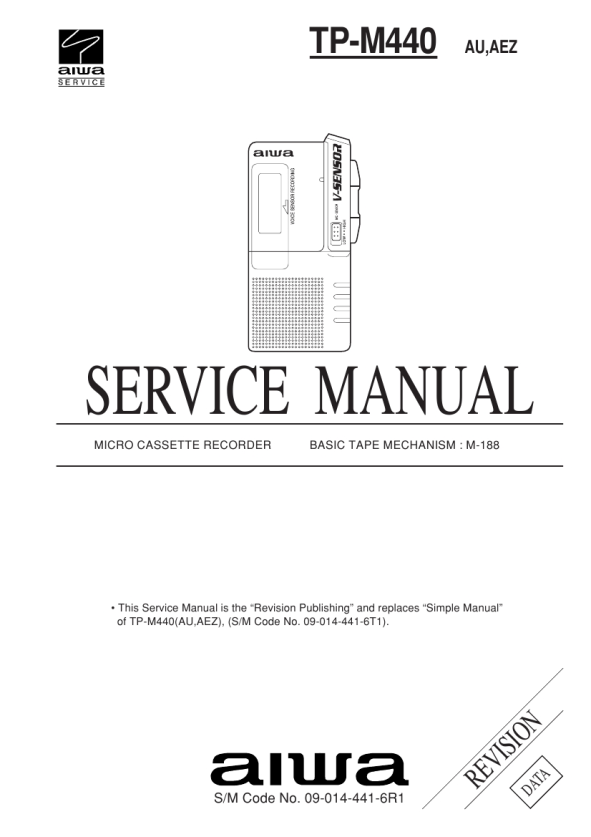

$4.99 TP-M440 AIWA Owner's Manual Complete owner's manual in digital format. The manual will be available for download as PDF file aft…
|
|
|
> |
|
