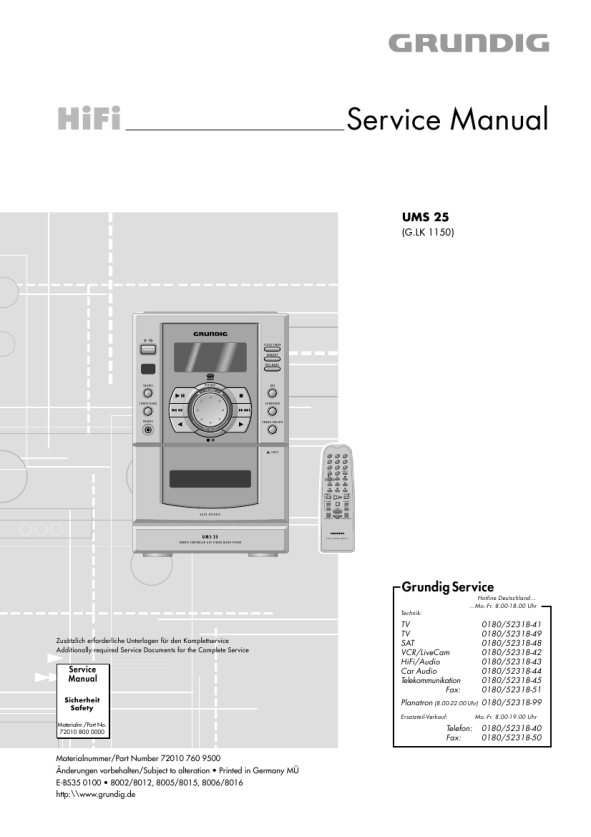

UMS 25
Abgleichvorschriften / Adjustment Procedures
D
Abgleichvorschriften
Cassettenteil
Me�geräte/Me�mittel: NF-Voltmeter, Frequenzzähler, Cr-Testkassette (3150Hz / 10kHz) z.B. 448A Abgleich 1. Azimut Vorbereitung Die Einstellschrauben der Tonköpfe sind durch kleine Aussparungen in der Frontblende zugänglich. Pegeltonteil 10kHz der Cr-Testkassette wiedergeben. NF-Voltmeter an Lautsprecherausgänge. Abgleichvorgang Mit den entsprechenden Schrauben bei Normal- und Reversebetrieb den linken und rechten Kanal auf gleiches Maximum stellen.
reverse
normal
EJECT
AUTO REVERSE
U M S 25
REMOTE CONTROLLED HIFI STEREO MICRO SYSTEM
2. Geschwindigkeit
Cr-Testkassette einlegen und Pegeltonteil 3150Hz wiedergeben. Frequenzzähler an Lautsprecherausgänge.
Frequenz mit Motorpoti auf 3150Hz ± 50Hz einstellen.
Motorpoti
GRUNDIG Service
2-1
|
|
|
> |
|
|
