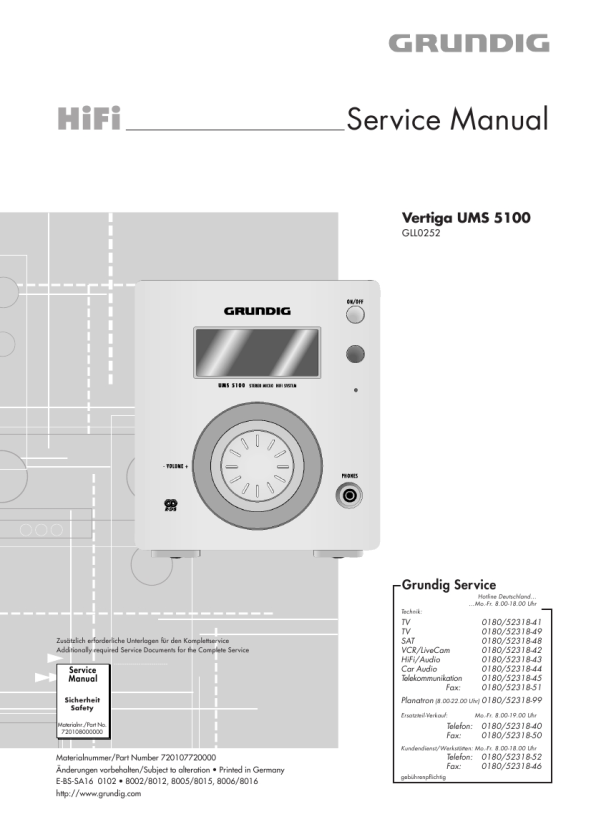

Vertiga UMS 5100
Abgleichvorschriften / Adjustment Procedures
Abgleichvorschriften
Tuner
Messgeräte: Wobbel- / Mess-Sender, Klirrfaktormessgerät, Oszilloskop, Digital-Voltmeter Hinweis: Das Frontend ist ein komplett abgeglichener Baustein. Nur das ZF-Filter muss dem ZF-Verstärker angeglichen werden (Abgl. 4). Die Abstimmspannungen des Frontends haben folgende Grössen: 87,5MHz = typ. 1,6V; 108MHz = typ. 8,0V.
Abgleich 1. AM-ZF
Vorbereitung AM; Wobbler 450kHz an AM-Antennen-Eingang; Ue > 60dBµV; Oszilloskop über 100nF an Messpunkt A.
Abgleichvorgang Mit L6 a auf Maximum abgleichen.
2. AM-Oszillator
AM, 522kHz; Digital-Voltmeter an Messpunkt B. AM; Mess-Sender über Loop-Antennen ankoppeln; Ue > 50dBµV; fmod = 1kHz; Oszilloskop an Lautsprecher-Ausgang. FM, 98,1Mz; Mess-Sender an FM-Antennen-Eingang; Ue = 20dBµV; fmod = 1kHz; Hub = 75kHz; Klirrfaktormessgerät an Lautsprecher-Ausgänge. FM; Mess-Sender an FM-Antennen-Eingang; Ue = 50dBµV; fmod = 19kHz; Oszilloskop an Lautsprecher-Ausgänge.
Mit L8 b auf 1,4V ± 0,1V abgleichen. Kontrolle auf 8,0V ± 0,2V bei 1620MHz. Wechselweise mit L7 c bei 612kHz und mit CT3 d bei 1404kHz auf NF-Maximum abgleichen.
3. AM-Vorkreis
4. FM-ZF
Mit ZF-Filter e auf Klirrfaktor-Minimum abgleichen.
5. 19kHz-Sperrkreise
Mit T2 g (linker Kanal) und mit T1 f (rechter Kanal) auf NF-Minimum abgleichen.
Abgleichlageplan
GRUNDIG Service
2-1
|
|
|
> |
|
