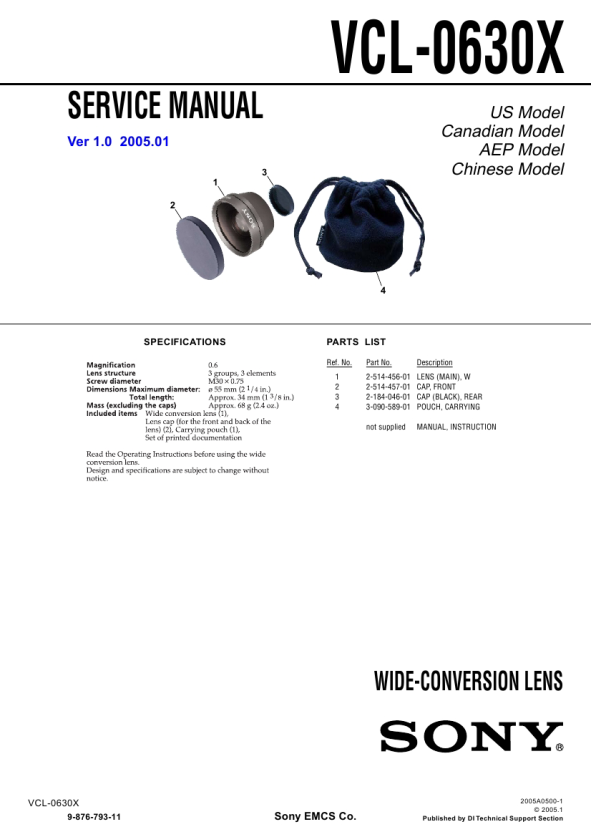

VCL-0630X
SERVICE MANUAL
Ver 1.0 2005.01
3 1 2
US Model Canadian Model AEP Model Chinese Model
4
SPECIFICATIONS
PARTS LIST
Ref. No. 1 2 3 4 Part No. 2-514-456-01 2-514-457-01 2-184-046-01 3-090-589-01 not supplied Description LENS (MAIN), W CAP, FRONT CAP (BLACK), REAR POUCH, CARRYING MANUAL, INSTRUCTION
WIDE-CONVERSION LENS
VCL-0630X
9-876-793-11
Sony EMCS Co.
2005A0500-1 © 2005.1 Published by DI Technical Support Section
|
|
|
> |
|
