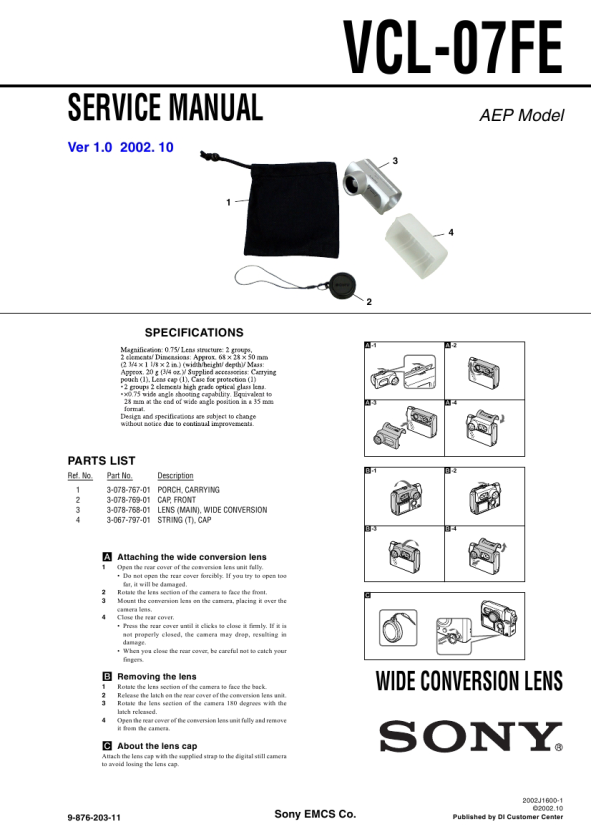

VCL-07FE
SERVICE MANUAL
Ver 1.0 2002. 10
3 1 4
AEP Model
2
SPECIFICATIONS
A-1 A-2
A-3
A-4
PARTS LIST
Ref. No. 1 2 3 4 Part No. 3-078-767-01 3-078-769-01 3-078-768-01 3-067-797-01 Description PORCH, CARRYING CAP, FRONT LENS (MAIN), WIDE CONVERSION STRING (T), CAP
B-3 B-4 B-1 B-2
A Attaching the wide conversion lens
1 Open the rear cover of the conversion lens unit fully. � Do not open the rear cover forcibly. If you try to open too far, it will be damaged. Rotate the lens section of the camera to face the front. Mount the conversion lens on the camera, placing it over the camera lens. Close the rear cover. � Press the rear cover until it clicks to close it firmly. If it is not properly closed, the camera may drop, resulting in damage. � When you close the rear cover, be careful not to catch your fingers.
2 3 4
C
B Removing the lens
1 2 3 4 Rotate the lens section of the camera to face the back. Release the latch on the rear cover of the conversion lens unit. Rotate the lens section of the camera 180 degrees with the latch released. Open the rear cover of the conversion lens unit fully and remove it from the camera.
WIDE CONVERSION LENS
C About the lens cap
Attach the lens cap with the supplied strap to the digital still camera to avoid losing the lens cap.
9-876-203-11
Sony EMCS Co.
2002J1600-1 ©2002.10 Published by DI Customer Center
|
|
|
> |
|
