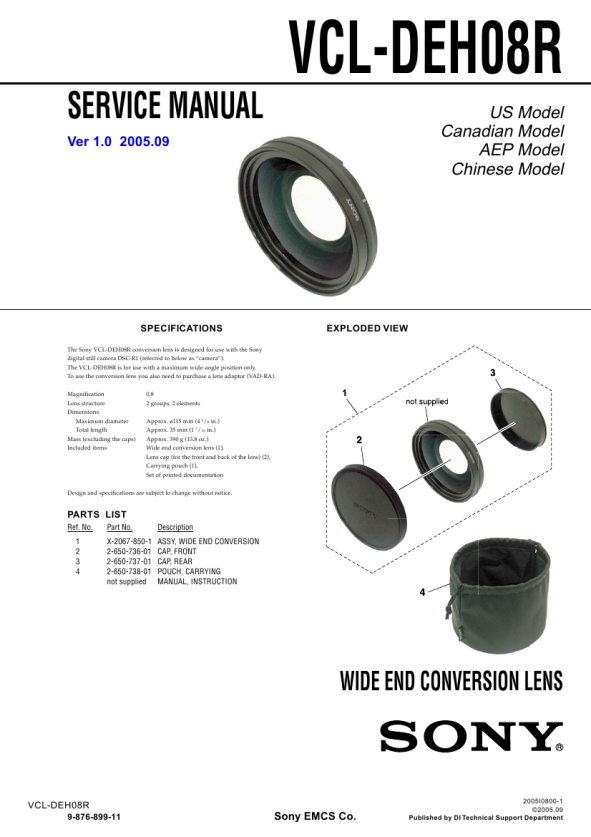

VCL-DEH08R
SERVICE MANUAL
Ver 1.0 2005.09
US Model Canadian Model AEP Model Chinese Model
SPECIFICATIONS
The Sony VCL-DEH08R conversion lens is designed for use with the Sony digital still camera DSC-R1 (referred to below as �camera�). The VCL-DEH08R is for use with a maximum wide-angle position only. To use the conversion lens you also need to purchase a lens adaptor (VAD-RA). Magnification Lens structure Dimensions Maximum diameter Total length Mass (excluding the caps) Included items 0.8 2 groups, 2 elements Approx. ø115 mm (4 5/8 in.) Approx. 35 mm (1 7/16 in.) Approx. 390 g (13.8 oz.) Wide end conversion lens (1), Lens cap (for the front and back of the lens) (2), Carrying pouch (1), Set of printed documentation
EXPLODED VIEW
1
Design and specifications are subject to change without notice.
PARTS LIST
Ref. No. 1 2 3 4 Part No. X-2067-850-1 2-650-736-01 2-650-737-01 2-650-738-01 not supplied Description ASSY, WIDE END CONVERSION CAP, FRONT CAP, REAR POUCH, CARRYING MANUAL, INSTRUCTION
WIDE END CONVERSION LENS
VCL-DEH08R
9-876-899-11
2005I0800-1 ©2005.09
Sony EMCS Co.
Published by DI Technical Support Department
|
|
|
> |
|
