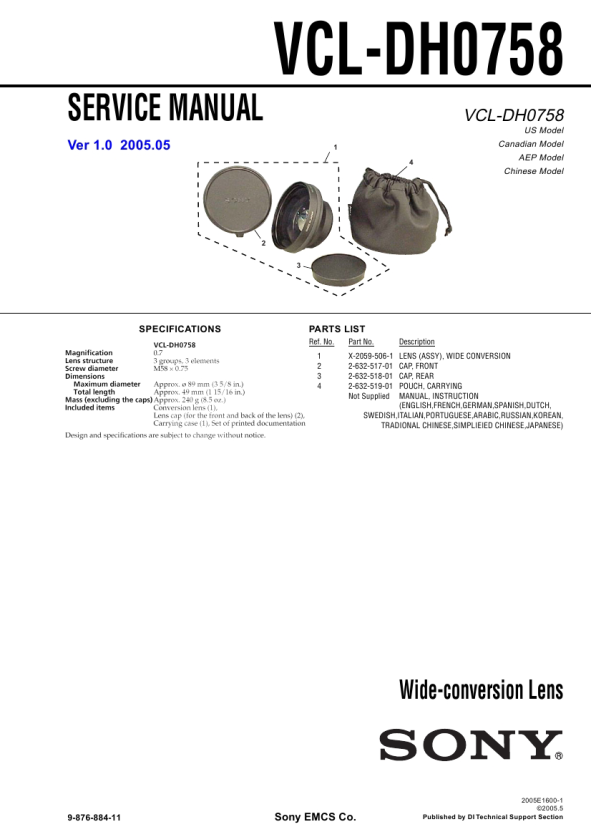

VCL-DH0758
SERVICE MANUAL
Ver 1.0 2005.05
1 4
VCL-DH0758
US Model Canadian Model AEP Model Chinese Model
2 3
SPECIFICATIONS
PARTS LIST
Ref. No. 1 2 3 4 Part No. X-2059-506-1 2-632-517-01 2-632-518-01 2-632-519-01 Not Supplied Description LENS (ASSY), WIDE CONVERSION CAP, FRONT CAP, REAR POUCH, CARRYING MANUAL, INSTRUCTION (ENGLISH,FRENCH,GERMAN,SPANISH,DUTCH, SWEDISH,ITALIAN,PORTUGUESE,ARABIC,RUSSIAN,KOREAN, TRADIONAL CHINESE,SIMPLIEIED CHINESE,JAPANESE)
Wide-conversion Lens
9-876-884-11
Sony EMCS Co.
2005E1600-1 ©2005.5 Published by DI Technical Support Section
|
|
|
> |
|
