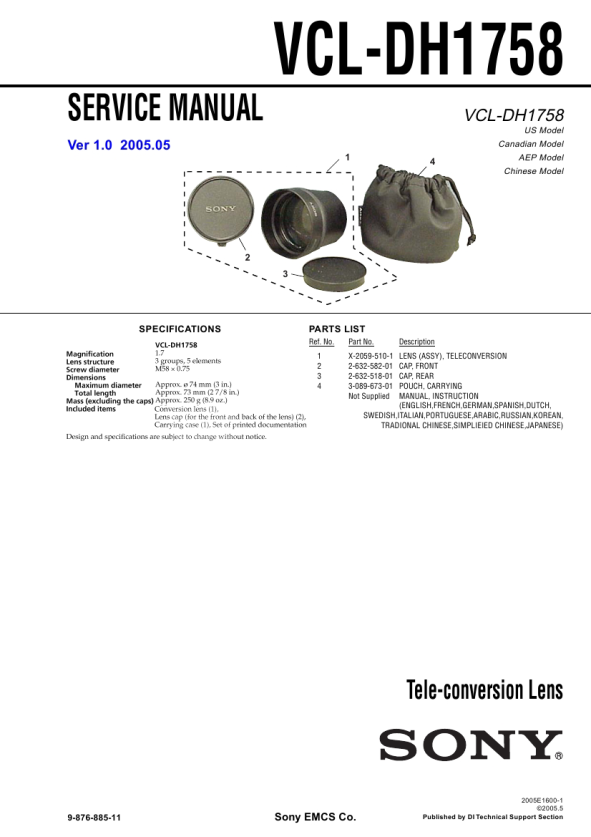

VCL-DH1758
SERVICE MANUAL
Ver 1.0 2005.05
1 4
VCL-DH1758
Chinese Model
US Model Canadian Model AEP Model
2 3
SPECIFICATIONS
PARTS LIST
Ref. No. 1 2 3 4 Part No. X-2059-510-1 2-632-582-01 2-632-518-01 3-089-673-01 Not Supplied Description LENS (ASSY), TELECONVERSION CAP, FRONT CAP, REAR POUCH, CARRYING MANUAL, INSTRUCTION (ENGLISH,FRENCH,GERMAN,SPANISH,DUTCH, SWEDISH,ITALIAN,PORTUGUESE,ARABIC,RUSSIAN,KOREAN, TRADIONAL CHINESE,SIMPLIEIED CHINESE,JAPANESE)
Tele-conversion Lens
9-876-885-11
Sony EMCS Co.
2005E1600-1 ©2005.5 Published by DI Technical Support Section
|
|
|
> |
|
