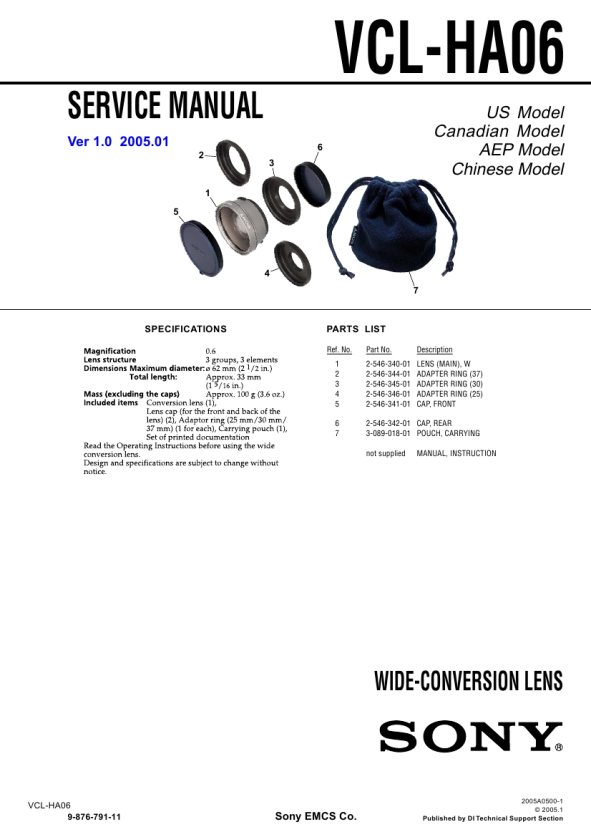

VCL-HA06
SERVICE MANUAL
Ver 1.0 2005.01
2 6 3 1 5
US Model Canadian Model AEP Model Chinese Model
4 7
SPECIFICATIONS
PARTS LIST
Ref. No. 1 2 3 4 5 6 7 Part No. 2-546-340-01 2-546-344-01 2-546-345-01 2-546-346-01 2-546-341-01 Description LENS (MAIN), W ADAPTER RING (37) ADAPTER RING (30) ADAPTER RING (25) CAP, FRONT
2-546-342-01 CAP, REAR 3-089-018-01 POUCH, CARRYING not supplied MANUAL, INSTRUCTION
WIDE-CONVERSION LENS
VCL-HA06 9-876-791-11
2005A0500-1 © 2005.1
Sony EMCS Co.
Published by DI Technical Support Section
|
|
|
> |
|
