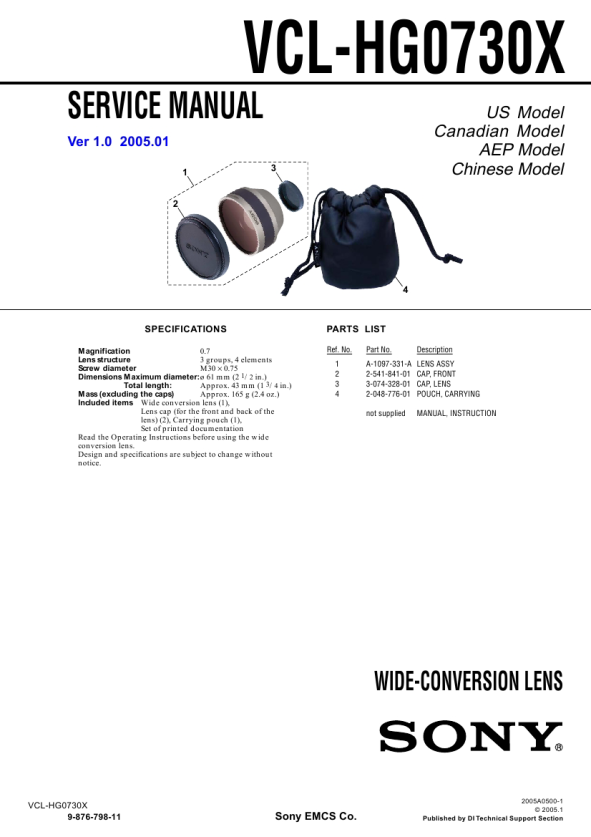

VCL-HG0730X
SERVICE MANUAL
Ver 1.0 2005.01
1 3 2
US Model Canadian Model AEP Model Chinese Model
4
SPECIFICATIONS
Magnification 0.7 Lens structure 3 groups, 4 elements Screw diameter M30 � 0.75 Dimensions Maximum diameter:ø 61 mm (2 1/2 in.) Total length: Approx. 43 mm (1 3/4 in.) Mass (excluding the caps) Approx. 165 g (2.4 oz.) Included items Wide conversion lens (1), Lens cap (for the front and back of the lens) (2), Carrying pouch (1), Set of printed documentation Read the Operating Instructions before using the wide conversion lens. Design and specifications are subject to change without notice.
PARTS LIST
Ref. No. 1 2 3 4 Part No. A-1097-331-A 2-541-841-01 3-074-328-01 2-048-776-01 not supplied Description LENS ASSY CAP, FRONT CAP, LENS POUCH, CARRYING MANUAL, INSTRUCTION
WIDE-CONVERSION LENS
VCL-HG0730X 9-876-798-11
2005A0500-1 © 2005.1
Sony EMCS Co.
Published by DI Technical Support Section
|
|
|
> |
|
