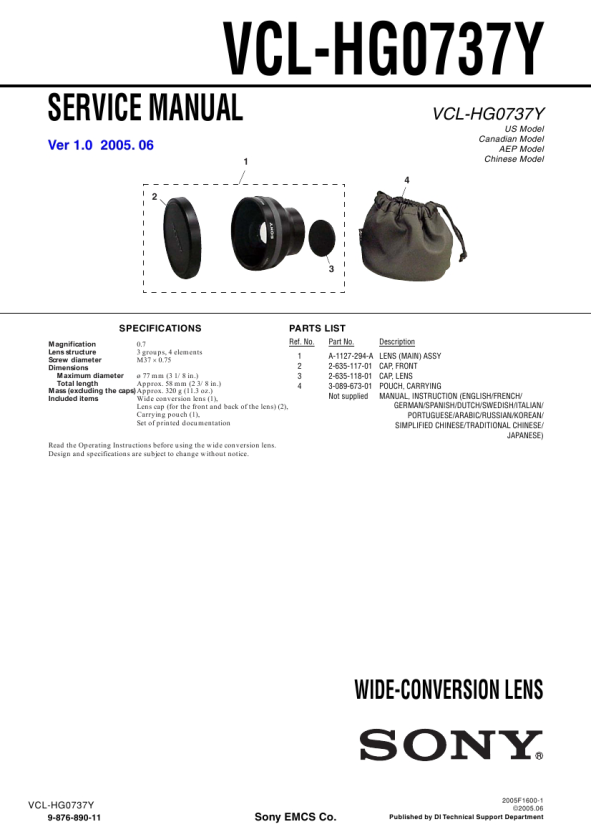

VCL-HG0737Y
SERVICE MANUAL
Ver 1.0 2005. 06
1 4 2
VCL-HG0737Y
US Model Canadian Model AEP Model Chinese Model
3
SPECIFICATIONS
PARTS LIST
Part No. A-1127-294-A 2-635-117-01 2-635-118-01 3-089-673-01 Not supplied Description LENS (MAIN) ASSY CAP, FRONT CAP, LENS POUCH, CARRYING MANUAL, INSTRUCTION (ENGLISH/FRENCH/ GERMAN/SPANISH/DUTCH/SWEDISH/ITALIAN/ PORTUGUESE/ARABIC/RUSSIAN/KOREAN/ SIMPLIFIED CHINESE/TRADITIONAL CHINESE/ JAPANESE)
Magnification 0.7 Ref. No. Lens structure 3 groups, 4 elements 1 Screw diameter M37 � 0.75 Dimensions 2 Maximum diameter ø 77 mm (3 1/8 in.) 3 Total length Approx. 58 mm (2 3/8 in.) 4 Mass (excluding the caps) Approx. 320 g (11.3 oz.) Included items Wide conversion lens (1), Lens cap (for the front and back of the lens) (2), Carrying pouch (1), Set of printed documentation Read the Operating Instructions before using the wide conversion lens. Design and specifications are subject to change without notice.
WIDE-CONVERSION LENS
VCL-HG0737Y
9-876-890-11
2005F1600-1 ©2005.06
Sony EMCS Co.
Published by DI Technical Support Department
|
|
|
> |
|
