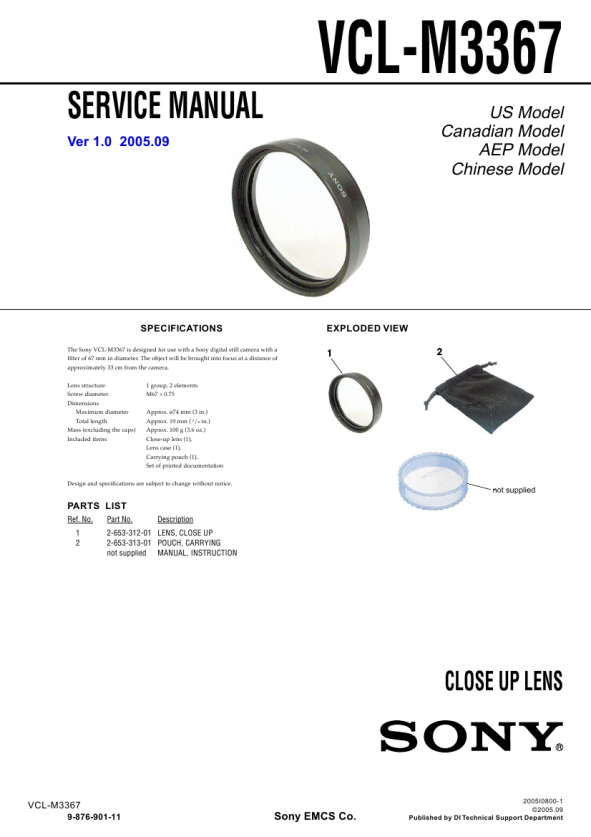

VCL-M3367
SERVICE MANUAL
Ver 1.0 2005.09
US Model Canadian Model AEP Model Chinese Model
SPECIFICATIONS
The Sony VCL-M3367 is designed for use with a Sony digital still camera with a filter of 67 mm in diameter. The object will be brought into focus at a distance of approximately 33 cm from the camera. Lens structure Screw diameter Dimensions Maximum diameter Total length Mass (excluding the caps) Included items 1 group, 2 elements M67 � 0.75 Approx. ø74 mm (3 in.) Approx. 19 mm ( 3/4 in.) Approx. 100 g (3.6 oz.) Close-up lens (1), Lens case (1), Carrying pouch (1), Set of printed documentation
EXPLODED VIEW
Design and specifications are subject to change without notice.
ot supplied
PARTS LIST
Ref. No. 1 2 Part No. Description 2-653-312-01 LENS, CLOSE UP 2-653-313-01 POUCH, CARRYING not supplied MANUAL, INSTRUCTION
CLOSE UP LENS
VCL-M3367
9-876-901-11
2005I0800-1 ©2005.09
Sony EMCS Co.
Published by DI Technical Support Department
|
|
|
> |
|
