The service manual is a good quality scan of the Panasonic NV-850, which is electrically identical to the Philips VR 6920, but mecanically just nearly.

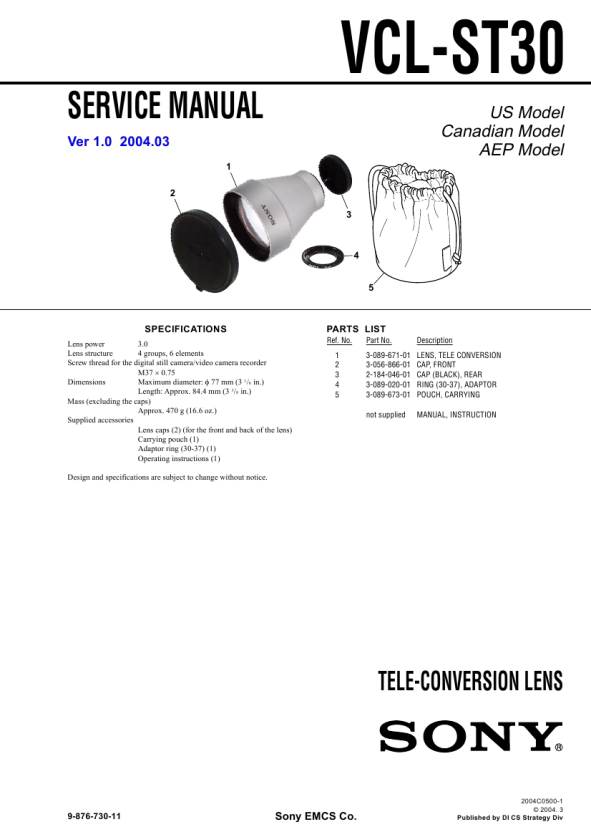

VCL-ST30
SERVICE MANUAL
Ver 1.0 2004.03
1 2 3
US Model Canadian Model AEP Model
4 5
SPECIFICATIONS
Lens power 3.0 Lens structure 4 groups, 6 elements Screw thread for the digital still camera/video camera recorder M37 � 0.75 Dimensions Maximum diameter: � 77 mm (3 1/8 in.) Length: Approx. 84.4 mm (3 3/8 in.) Mass (excluding the caps) Approx. 470 g (16.6 oz.) Supplied accessories Lens caps (2) (for the front and back of the lens) Carrying pouch (1) Adaptor ring (30-37) (1) Operating instructions (1) Design and specifications are subject to change without notice.
PARTS LIST
Ref. No. 1 2 3 4 5 Part No. 3-089-671-01 3-056-866-01 2-184-046-01 3-089-020-01 3-089-673-01 not supplied Description LENS, TELE CONVERSION CAP, FRONT CAP (BLACK), REAR RING (30-37), ADAPTOR POUCH, CARRYING MANUAL, INSTRUCTION
TELE-CONVERSION LENS
9-876-730-11
Sony EMCS Co.
2004C0500-1 © 2004. 3 Published by DI CS Strategy Div
 $4.99 VCLST30 SONY
