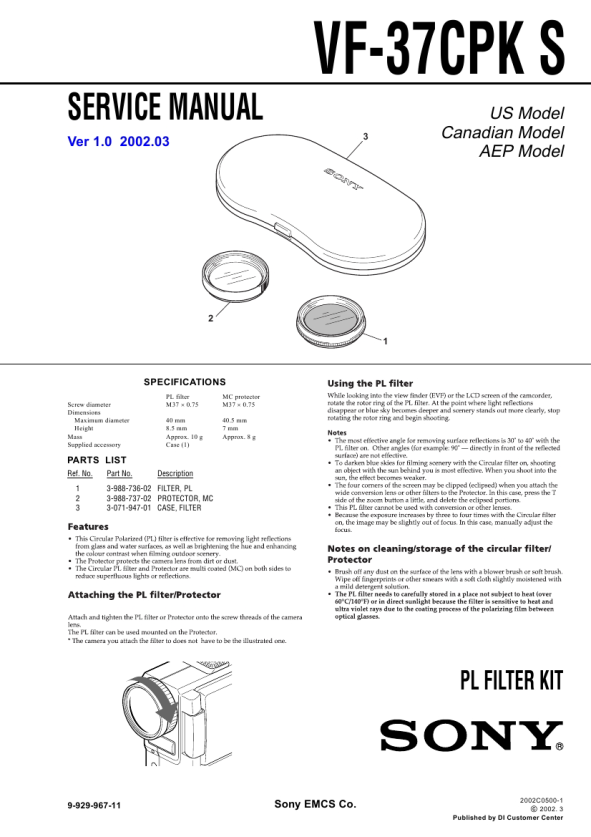

VF-37CPK S
SERVICE MANUAL
Ver 1.0 2002.03
3
US Model Canadian Model AEP Model
2 1
SPECIFICATIONS
Screw diameter Dimensions Maximum diameter Height Mass Supplied accessory PL filter M37 � 0.75 40 mm 8.5 mm Approx. 10 g Case (1) MC protector M37 � 0.75 40.5 mm 7 mm Approx. 8 g
PARTS LIST
Ref. No. 1 2 3 Part No. Description 3-988-736-02 FILTER, PL 3-988-737-02 PROTECTOR, MC 3-071-947-01 CASE, FILTER
PL FILTER KIT
9-929-967-11
Sony EMCS Co.
2002C0500-1 C 2002. 3 Published by DI Customer Center
|
|
|
> |
|
