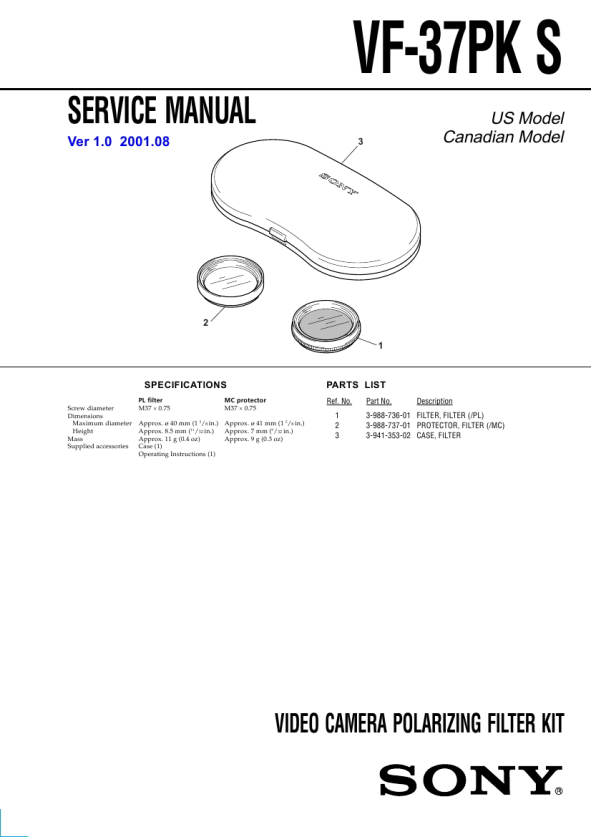

VF-37PK S
A
Thank you for purchasing the Sony Video Camera Polarizing Filter Kit. Before operating this unit, read this manual thoroughly and retain it for future reference.
Features
� This PL (Polarizing) filter is effective for removing light reflections from glass and water surfaces, as well as brightening the hue and enhancing the colour contrast when filming outdoor scenery. � This MC protector is multi coated (MC) on both sides to prevent damage.
Attaching the PL filter/MC protector
See illustration A.
B
Attach and tighten the PL filter or MC protector onto the screw threads of the camera lens accessory position of the camcorder.
Using the PL filter
While looking into the view finder (EVF) or the LCD screen of the camcorder, rotate the rotor ring of the PL filter. At the point the light reflection disappears or the blue sky becomes deeper and scenery stands out clearly, stop rotating the rotor ring and begin shooting.
30� � 40�
30� � 40�
Notes
� Because the exposure increases by three to four times with the PL filter on, the image may be slightly out of focus. In this case, manually adjust the focus. � The most effective angle for removing surface reflections is 30� to 40� with the PL filter on. Other angles (for example: 90� �� directly in front of the reflected surface) are not effective. See illustration B. � To darken the blue sky for filming scenery with the PL filter on, shooting an object with the sun behind you is most effective. When you shoot into the sun, the effect becomes weaker. � This PL filter is a processed filter with polarizing film on the optical glass; therefore, do not leave the filter in a place subject to heat, humidity, or direct sunlight. (High temperatures may cause colour change.) Be careful in handling. � The four corners of the screen may be clipped (eclipsed) when you attach the wide conversion lens to the MC protector. In this case, press the T side of the zoom button a little, and delete the eclipsed portions. � When you put the PL filter into the case, make sure to put the filter face down, with the screw threads upward. See illustration C. � This PL filter cannot be used with wide conversion or other lenses.
C
With the screw threads upward
Cleaning the PL filter/MC protector
Brush off the dust on the surface of the lens with a blower brush or soft brush. Wipe off fingerprints or other smears with a soft cloth slightly moistened with a mild detergent solution.
9-929-909-11
Sony EMCS Co. Kohda TEC
�2�
2001H0500-1 © 2001. 8 Published by PV Customer Center
|
|
|
> |
|
