Home >> AIWA >> VX-S137U Service Manual

 0 item(s) in your cart

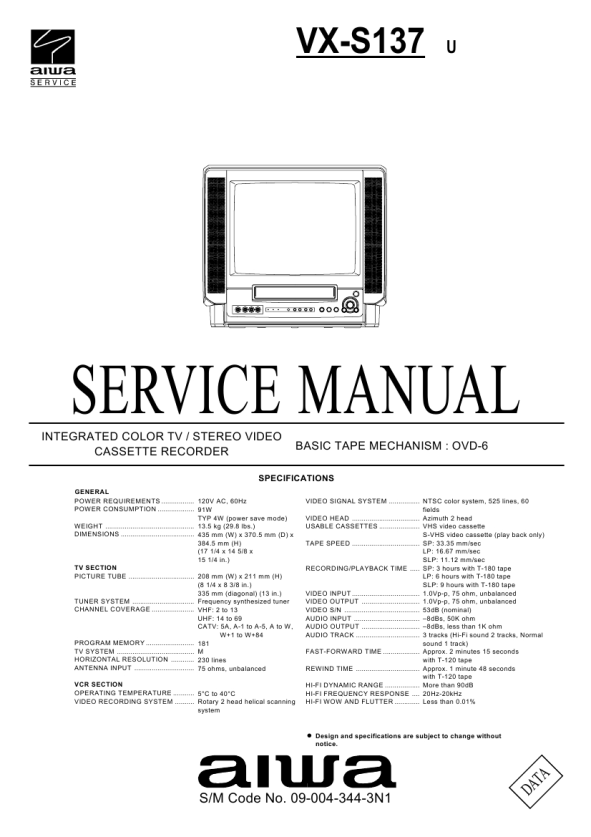

AIWA VX-S137U
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of AIWA VX-S137U Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 C-77 SANSUI Service Manual by Michael Moshkoff;
Excellent printing quality. A complete and very useful manual with all details.
 KT-900 KENWOOD Service Manual by william delbove;
Even if the PDF is a scan, I can read the information I need. The price is affordable and the service (mail sending) is very fast. Thanks ! Regards. William (Fan of Kenwood)
 22DC982 PHILIPS Service Manual by Szalka Imre;
Very good quality original datasheet!I like this amazing website!!!!!!
 MODEL 3080 NAD Service Manual by Jeremy Whitehead;
Excellent just what I needed to replace the electrolytic caps and make this old gem a beauty again. Was as scan of the original photocopied service manual.
 15L30 SALORA Service Manual by Libor Sindelar;
It was helpful to get schematic with waveforms in important points and lot of service information. Manual is good quality, fast delivered. Of course it is hardcopy of paper one with all its disadvantages.

Text excerpt from page 28 (click to view)
ELECTRICAL ADJUSTMENTS
2-14: SUB BRIGHTNESS 1. Receive the black pattern*. (RF Input) 2. Using the remote control, set the brightness and contrast to normal position. 3. Activate the adjustment mode display of Fig. 1-1 and press the channel button (4) on the remote control. The Fig. 2-5 appears on the display. 4. Press the channel button (1) on the remote control. 5. Press the VOL. UP/DOWN button on the remote control until the screen begin to shine. 6. Receive the black pattern*. (Audio Video Input) 7. Press the TV/VCR button on the remote control to set to the AV mode. Then perform the above adjustments 2~5. *The Black Pattern means the whole black raster signal. Select the "RASTER" of the pattern generator, set to the OFF position for each R, G and B. 1. BRIGHT 2. CONTRAST 3. COLOR 4. TINT 5. SHARPNESS 6. OSD CONT 7. 8. 2-16: SUB TINT 1. Receive the color bar pattern. (RF Input) 2. Using the remote control, set the brightness, contrast, color and tint to normal position. 3. Connect the synchro scope to TP803. 4. Activate the adjustment mode display of Fig. 1-1 and press the channel button (4) on the remote control. The Fig. 2-5 appears on the display. 5. Press the channel button (4) on the remote control. 6. Press the VOL. UP/DOWN button on the remote control until the section "A" becomes a straight line. (Refer to Fig. 2-7) 7. Receive the color bar pattern. (Audio Video Input) 8. Press the TV/VCR button on the remote control to set to the AV mode. Then perform the above adjustments 2~6.

"A" 0. RETURN Fig. 2-5 Fig. 2-7 2-17: SUB CONTRAST 1. Activate the adjustment mode display of Fig. 1-1 and press the channel button (4) on the remote control. The Fig. 2-5 appears on the display. 2. Press the channel button (2) on the remote control. 3. Press the VOL. UP/DOWN button on the remote control until the contrast step No. becomes "82" 4. Press the TV/VCR button on the remote control to set to the AV mode. 5. Activate the adjustment mode display of Fig. 1-1 and press the channel button (4) on the remote control. The Fig. 2-5 appears on the display. 6. Press the channel button (2) on the remote control. 7. Press the VOL. UP/DOWN button on the remote control until the contrast step No. becomes "97" 2-18: SUB SHARPNESS 1. Activate the adjustment mode display of Fig. 1-1 and press the channel button (4) on the remote control. The Fig. 2-5 appears on the display. 2. Press the channel button (5) on the remote control. 3. Check if the step No. of SHARPNESS is "24". 4. Press the TV/VCR button on the remote control to set to the AV mode. Then perform the above adjustments 1~3. 2-19: OSD CONTRAST 1. Using the remote control, set the brightness and contrast to normal position. 2. Activate the adjustment mode display of Fig. 1-1 and press the channel button (4) on the remote control. The Fig. 2-5 appears on the display. 3. Press the channel button (6) on the remote control. 4. Check if the step No. of OSD CONT. is "0". D2-3

2-15: SUB COLOR 1. Receive the color bar pattern. (RF Input) 2. Using the remote control, set the brightness, contrast, color and tint to normal position. 3. Connect the synchro scope to TP801. 4. Activate the adjustment mode display of Fig. 1-1 and press the channel button (4) on the remote control. The Fig. 2-5 appears on the display. 5. Press the channel button (3) on the remote control. 6. Adjust the VOLTS RANGE VARIABLE knob of the oscilloscope until the range between white 100% and 0% is set to 5 scales on the screen of the oscilloscope. 7. Press the VOL. UP/DOWN button on the remote control until the red color level is adjusted to 100 ± 5% of the white level. (Refer to Fig. 2-6) 8. Receive the color bar pattern. (Audio Video Input) 9. Press the TV/VCR button on the remote control to set to the AV mode. Then perform the above adjustments 2~7. White 0% 0%

100%

Red Level White 100% Fig. 2-6
