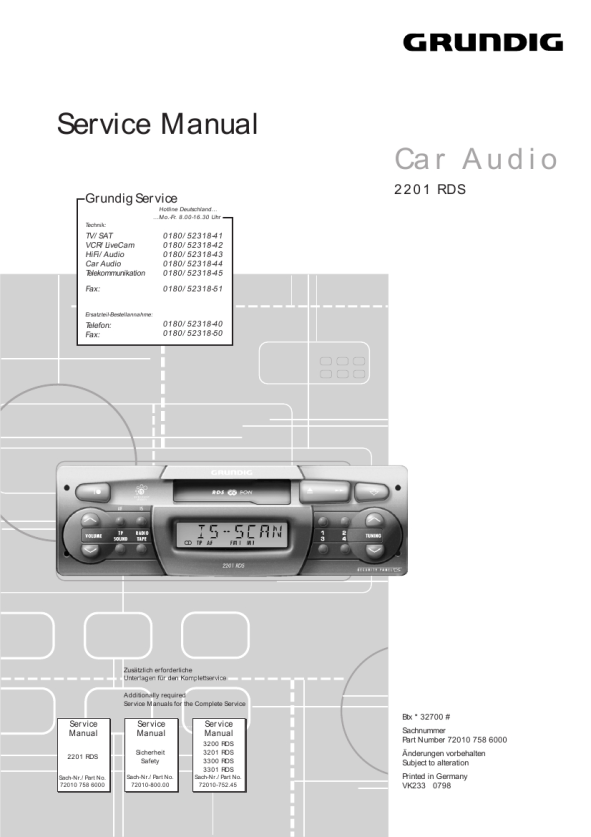

2201 RDS
D
Das Gerät 2201 RDS entspricht dem Gerät 3201 RDS, jedoch ohne CD-Wechsler-Steuerung und ohne Telefon-Mute. Mit diesem Service Manual erhalten Sie eine Liste der nicht bestückten elektrischen Teile, sowie die Ersatzteilliste der geänderten bzw. neuen Teile. Ansonsten verwenden Sie bitte das Service Manual 3200 RDS � 3301 RDS, Sach-Nr. 72010-752.45.
GB
The car radio 2201 RDS is identical with the version 3201 RDS except of: no CD changer control and no telefone mute. This Service Manual contains a list of the not fitted electrical parts and the spare parts list of the altered or new components. Otherwise please refer to the Service Manual 3200 RDS � 3301 RDS, part no. 72010-752.45
Nicht bestückte Bauteile
Prozessor-Teil (Seite 3 - 7): CD801, CR833, CR834, CT805 NF-Teil (Seite 3 - 13): C1503, C1504, C1506 NF-Teil (Seite 3 - 14): D8001, CC8001, CR8004 Anschlu�platte (Seite 3 -16): CC1701, CC1702, CC1703, CC1704, CC1706, CC1707, CC1708, CC1709, CC1719, CC1722, CC1723, CC1724, CC1726, CC1727 Anschlüsse I-13, I-15 � I-20 unbeschaltet.
Not fitted Components
Processor Part (page 3 - 7): CD801, CR833, CR834, CT805 AF Part (page 3 - 13): C1503, C1504, C1506 AF Part (page 3 - 14): D8001, CC8001, CR8004 Connection Board (page 3 - 16): CC1701, CC1702, CC1703, CC1704, CC1706, CC1707, CC1708, CC1709, CC1719, CC1722, CC1723, CC1724, CC1726, CC1727 Connections I-13, I-15 � I-20 unconnected.
Ersatzteilliste Spare Parts List 7 / 98
POS. NR. ABB. POS. NO. FIG. SACHNUMMER ANZ. PART NUMBER QTY. BEZEICHNUNG
CAR AUDIO
WKC 2201 RDS
SACH-NR. / PART NO.: 91835 081 5100 BESTELL-NR. / ORDER NO.: G.HK 2200 DESCRIPTION
d
WKC 2201 RDS TAUSCHGERAET BLENDE MONT.KPL. KLAPPE BEDIENTEIL MONT.KPL. BEDIENUNGSANLEITUNG D/GB/I/F/NL/E/P BEDIENUNGSANLEITUNG SK/S/DK/N/SF SERVICE MANUAL D/GB SERVICE MANUAL D/GB WKC 3201
©
WKC 2201 RDS EXCHANGE SET MASK MOUNT.CPL FLAP CONTROL UNIT MOUNT.CPL OPERATING INSTRUCTIONS D/GB/I/F/NL/E/P OPERATING INSTRUCTIONS SK/S/DK/N/SF SERVICE MANUAL D/GB SERVICE MANUAL D/GB WKC 3201
0001.000 0003.000 0020.000
1 1 1
72008 907 9900 18350 090 0000 18381 031 0100 18381 086 0000 18350 941 4100 18350 941 4300 72010 758 6000 72010 752 4500
POS. NR. POS. NO.
SACHNUMMER BEZEICHNUNG PART NUMBER DESCRIPTION
POS. NR. POS. NO.
SACHNUMMER BEZEICHNUNG PART NUMBER DESCRIPTION
CIC 801 CIC 802
83058 783 0700 SMD IC UPD780306GF-014-3B 72008 538 1200 SMD IC 24C04-I/SN PROG. KPL.
D 2001 DP 801
83092 150 2000 DIODE 1 N 4004 -GA 19720 259 0000 LCD DISPLAY SYSTEMS
Es gelten die Vorschriften und Sicherheitshinweise gemä� dem Service Manual "Sicherheit", Sach-Nummer 72010 800 0000, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
Btx *32700#
! (!)
The regulations and safety instructions shall be valid as provided by the "Safety" Service Manual, part number 72010 800 0000, as well as the respective national deviations.
�NDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
�nderungen vorbehalten Subject to alteration
Printed in Germany VK 233 0798
Service Manual Sach-Nr. / Part No. 72010 758 6000 9033
|
|
|
> |
|
