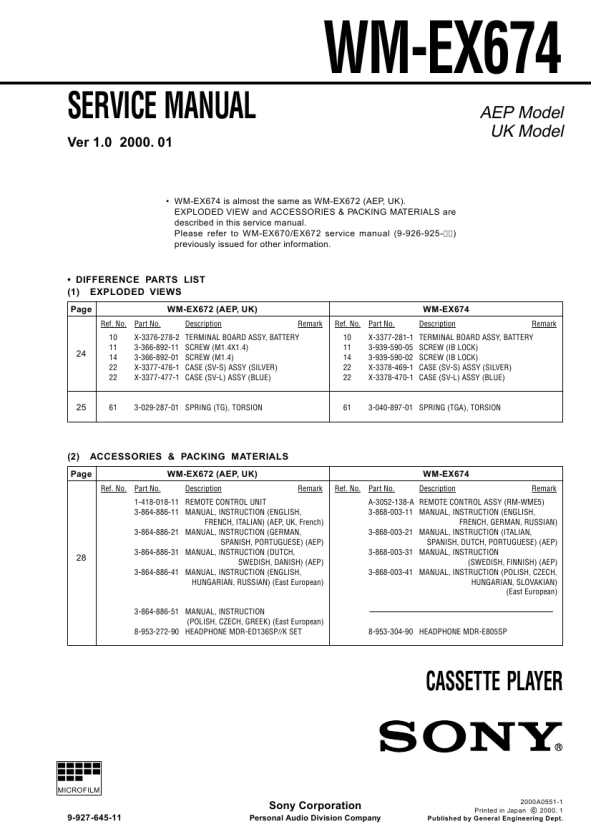

WM-EX674
SERVICE MANUAL
Ver 1.0 2000. 01
� WM-EX674 is almost the same as WM-EX672 (AEP, UK). EXPLODED VIEW and ACCESSORIES & PACKING MATERIALS are described in this service manual. Please refer to WM-EX670/EX672 service manual (9-926-925-[][]) previously issued for other information.
AEP Model UK Model
� DIFFERENCE PARTS LIST (1) EXPLODED VIEWS
Page
Ref. No. Part No. 10 11 14 22 22
WM-EX672 (AEP, UK)
Description Remark Ref. No. Part No. 10 11 14 22 22 X-3376-278-2 TERMINAL BOARD ASSY, BATTERY 3-366-892-11 SCREW (M1.4X1.4) 3-366-892-01 SCREW (M1.4) X-3377-476-1 CASE (SV-S) ASSY (SILVER) X-3377-477-1 CASE (SV-L) ASSY (BLUE)
WM-EX674
Description Remark X-3377-281-1 TERMINAL BOARD ASSY, BATTERY 3-939-590-05 SCREW (IB LOCK) 3-939-590-02 SCREW (IB LOCK) X-3378-469-1 CASE (SV-S) ASSY (SILVER) X-3378-470-1 CASE (SV-L) ASSY (BLUE)
24
25
61
3-029-287-01 SPRING (TG), TORSION
61
3-040-897-01 SPRING (TGA), TORSION
(2)
ACCESSORIES & PACKING MATERIALS
WM-EX672 (AEP, UK)
Ref. No. Part No. Description Remark Ref. No. Part No. 1-418-018-11 REMOTE CONTROL UNIT 3-864-886-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, ITALIAN) (AEP, UK, French) 3-864-886-21 MANUAL, INSTRUCTION (GERMAN, SPANISH, PORTUGUESE) (AEP) 3-864-886-31 MANUAL, INSTRUCTION (DUTCH, SWEDISH, DANISH) (AEP) 3-864-886-41 MANUAL, INSTRUCTION (ENGLISH, HUNGARIAN, RUSSIAN) (East European)
Page
WM-EX674
Description Remark A-3052-138-A REMOTE CONTROL ASSY (RM-WME5) 3-868-003-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, GERMAN, RUSSIAN) 3-868-003-21 MANUAL, INSTRUCTION (ITALIAN, SPANISH, DUTCH, PORTUGUESE) (AEP) 3-868-003-31 MANUAL, INSTRUCTION (SWEDISH, FINNISH) (AEP) 3-868-003-41 MANUAL, INSTRUCTION (POLISH, CZECH, HUNGARIAN, SLOVAKIAN) (East European)
28
3-864-886-51 MANUAL, INSTRUCTION (POLISH, CZECH, GREEK) (East European) 8-953-272-90 HEADPHONE MDR-ED136SP//K SET
8-953-304-90 HEADPHONE MDR-E805SP
CASSETTE PLAYER
MICROFILM
Sony Corporation
9-927-645-11
Personal Audio Division Company
2000A0551-1 Printed in Japan C 2000. 1 Published by General Engineering Dept.
|
|
|
> |
|
