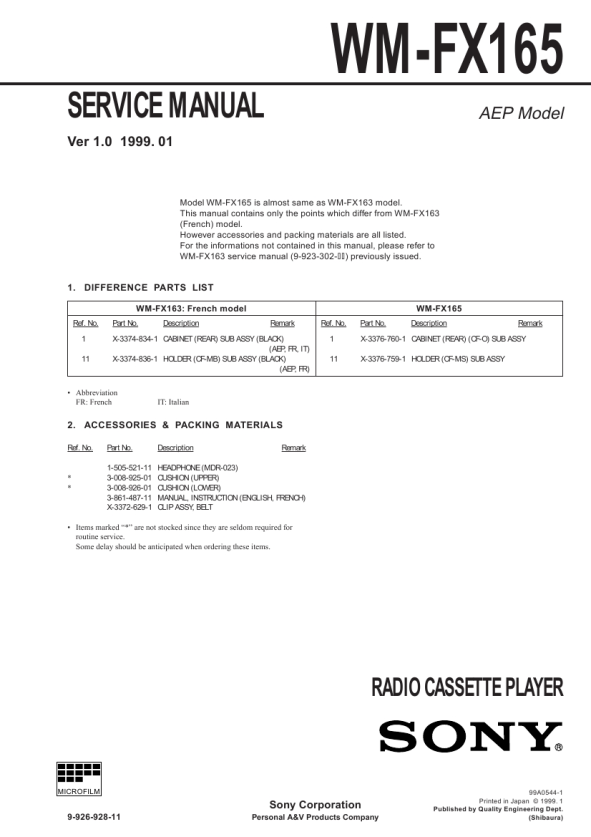

WM-FX165
SERVICE MANUAL
Ver 1.0 1999. 01
Model WM-FX165 is almost same as WM-FX163 model. This manual contains only the points which differ from WM-FX163 (French) model. However accessories and packing materials are all listed. For the informations not contained in this manual, please refer to WM-FX163 service manual (9-923-302-�) previously issued.
AEP Model
1. DIFFERENCE PARTS LIST
WM-FX163: French model
Ref. No. 1 11 Part No. Description Remark Ref. No. 1 11 Part No.
WM-FX165
Description Remark
X-3374-834-1 CABINET (REAR) SUB ASSY (BLACK) (AEP, FR, IT) X-3374-836-1 HOLDER (CF-MB) SUB ASSY (BLACK) (AEP, FR)
X-3376-760-1 CABINET (REAR) (CF-O) SUB ASSY X-3376-759-1 HOLDER (CF-MS) SUB ASSY
� Abbreviation FR: French
IT: Italian
2. ACCESSORIES & PACKING MATERIALS
Ref. No. Part No. 1-505-521-11 3-008-925-01 3-008-926-01 3-861-487-11 X-3372-629-1 Description Remark
* *
HEADPHONE (MDR-023) CUSHION (UPPER) CUSHION (LOWER) MANUAL, INSTRUCTION (ENGLISH, FRENCH) CLIP ASSY, BELT
� Items marked �*� are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.
RADIO CASSETTE PLAYER
MICROFILM
Sony Corporation
9-926-928-11
Personal A&V Products Company
99A0544-1 Printed in Japan © 1999. 1 Published by Quality Engineering Dept. (Shibaura)
|
|
|
> |
|
