This is a very good quality print (scan) of the original SONY service manual. The original from Sony is on very thin paper. Nevertheless it is very clear and sharp and excellent readable. I'm very satisfied to have now this rare document. I've looking for it many years (infrequent). It contains very detailed circuit diagrams, exploded views, part lists, PCB view with good readable connection lines. Very recommended.
;
A complete manual with all the needed details of calibrations and service instructions about the radio receiver.
A big deal.
Many thanks !
;
Fast delivery and good quality copy. To be recommended
;
Excellent product, very clear print. Detailed circuit and assembly diagrams - this enabled me to repair my CD player with confidence. I highly recommend this site.
;
Fast access, 100% correct and complete service manual
WM-D6C/TC-D6C
US Model
WM-D6C/TC-D6C
1-1.
1.
DIAGRAMS
NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
WM-D6C/TC-D6C
Note on Printed Wiring Boards: � X : parts extracted from the component side. � Y : parts extracted from the conductor side. � z : Through hole. � : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.)
Note on Schematic Diagram: � All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. � All resistors are in � and 1/4 W or less unless otherwise specified. � % : indicates tolerance. � Components for right channel have same values as for left channel. Reference numbers are coded from 200. � C : panel designation. � A : B+ Line. � H : adjustment for repair. � AC voltage readings in the bias oscillator with a level meter. � Total current is measured with no cassette installed. � Power voltage is dc 6 V and fed with regulated dc power supply from external power voltage jack. � Voltages are dc with respect to ground under no-signal conditions. no mark : playback ( ) : record < > : fast forward [ ] : rewind �� �� : pause I : NORM II : CrO2 IV : METAL � Voltages are taken with a VOM (Input impedance 10 M�). Voltage variations may be noted due to normal production tolerances. � Signal path. f : playback

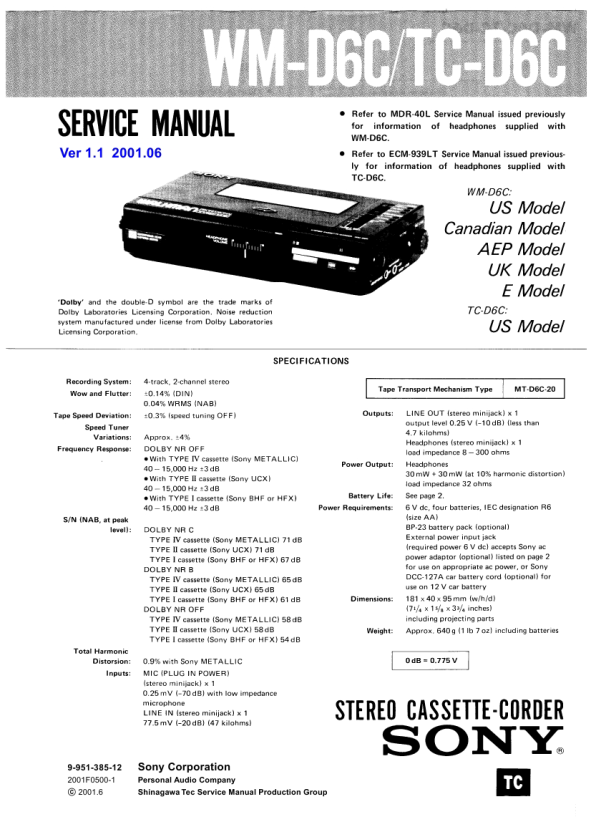

SERVICE MANUAL
Ver 1.1 2001.06
Canadian Model AEP Model UK Model E Model
WM-D6C
Caution: Pattern face side: (Conductor Side) Parts face side: (Component Side)
Parts on the pattern face side seen from the pattern face are indicated. Parts on the parts face side seen from the parts face are indicated.
SUPPLEMENT-4
Subject: Change of servo circuit
(ECN-WMA00831)
� NEW/FORMER TYPE DISCRIMINATION
� MAIN BOARD (Conductor Side) �
Former Type : 1-611-494-11, -12, 1-651-545-12 New Type : 1-651-545-14
9-951-385-84
2001F0500-1 C 2001.6
Sony Corporation
Personal Audio Company Shinagawa Tec Service Manual Production Group
