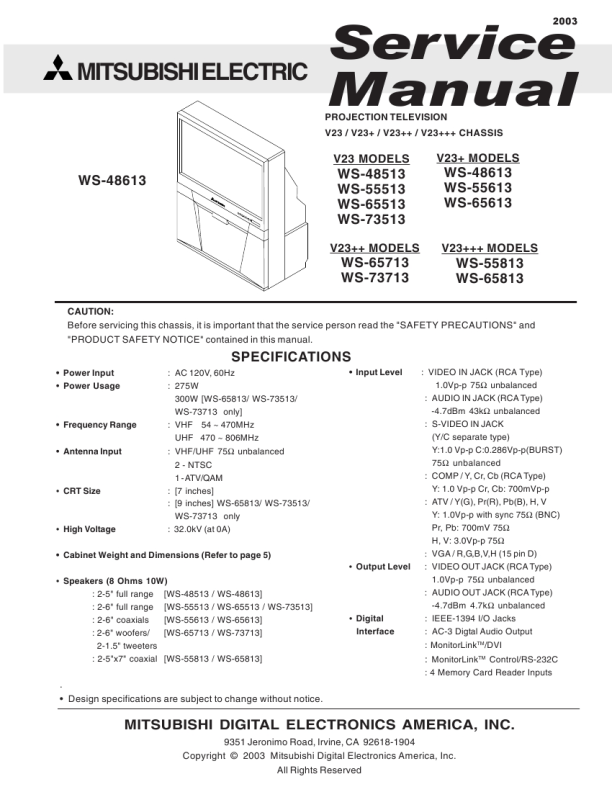

MODELS: WS-48513 / WS-48613 / WS-55513 / WS-55613 / WS-55813 / WS-65513 / WS-65613 / WS-65713 / WS-65813 / WS-73513 / WS-73713
CABINET DISASSEMBLY (REAR VIEW)
WS-48513 / WS-48613
*Refer to the Parts List for Part Numbers
Rear Cabinet Disassembly
Remove the Back Board by removing 7 screws (a), 2 screws (b) and 8 screws (c). Remove the Back Cover by removing 8 screw (d). Remove 4 screws (e) to remove the Board Slide. Remove screws (f) to remove the Board Shelves. Remove screw (g) holding the chassis. Remove 4 screws (h) securing the Light Box Assembly. Be certain that all cables and connectors between the Light Box Assembly and external items are disconnected (e.g. speaker plugs, etc.), including the USB and 1394 connectors from the Card Reader to the DM Module. 8. Slide the Light Box Assembly from the cabinet. Page 8 1. 2. 3 4. 5. 6. 7.
|
|
|
> |
|
|
