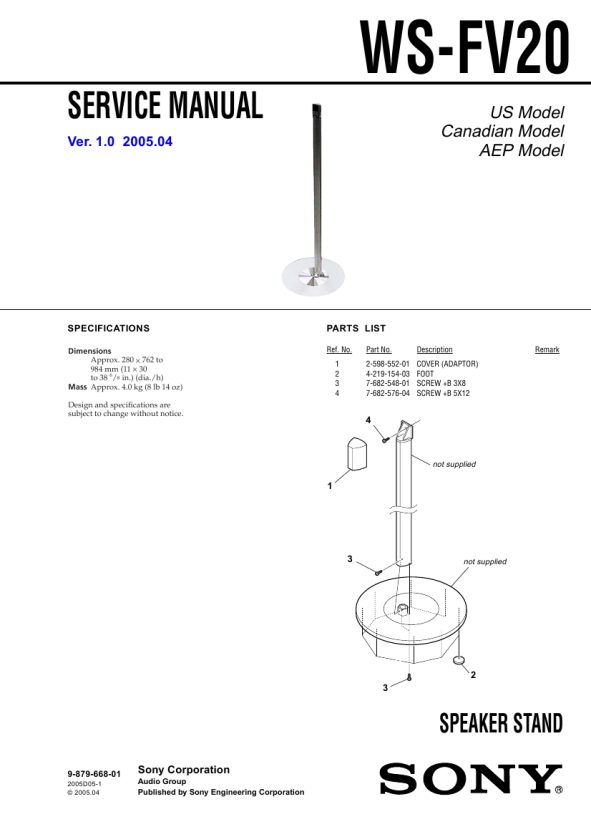

WS-FV20
SERVICE MANUAL
Ver. 1.0 2005.04
US Model Canadian Model AEP Model
SPECIFICATIONS
PARTS LIST
Ref. No. 1 2 3 4 Part No. 2-598-552-01 4-219-154-03 7-682-548-01 7-682-576-04 Description COVER (ADAPTOR) FOOT SCREW +B 3X8 SCREW +B 5X12 Remark
4
not supplied
1
3
not supplied
2 3
SPEAKER STAND
9-879-668-01
2005D05-1 © 2005.04
Sony Corporation
Audio Group Published by Sony Engineering Corporation
|
|
|
> |
|
