Home >> PIONEER >> X-A3800/KUCXJ Service Manual

 0 item(s) in your cart

PIONEER X-A3800/KUCXJ
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of PIONEER X-A3800/KUCXJ Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 HRS7700EK/EU JVC Service Manual by Nils Thei;
Complete service manual in excellent quality. I am very satisfied!
 UPM550 SENNHEISER Service Manual by Stephane Pouliot;
Excellent printing quality. A complete and very usefull service manual with all details. GREAT SERVICE AT VERY LOW PRICE! A++
 VKS604 SENNHEISER Service Manual by Stephane Pouliot;
Excellent printing quality. A complete and very usefull service manual with all details. GREAT SERVICE AT VERY LOW PRICE! A++
 C414B-TLII AKG Service Manual by Stephane Pouliot;
Excellent printing quality. A complete and very usefull user manual with all details schematics. GREAT MANUAL AT VERY LOW PRICE! A++
 RI300 SENNHEISER Service Manual by Stephane Pouliot;
Excellent printing quality. A complete and very usefull service manual with all details. GREAT SERVICE AT VERY LOW PRICE! A++

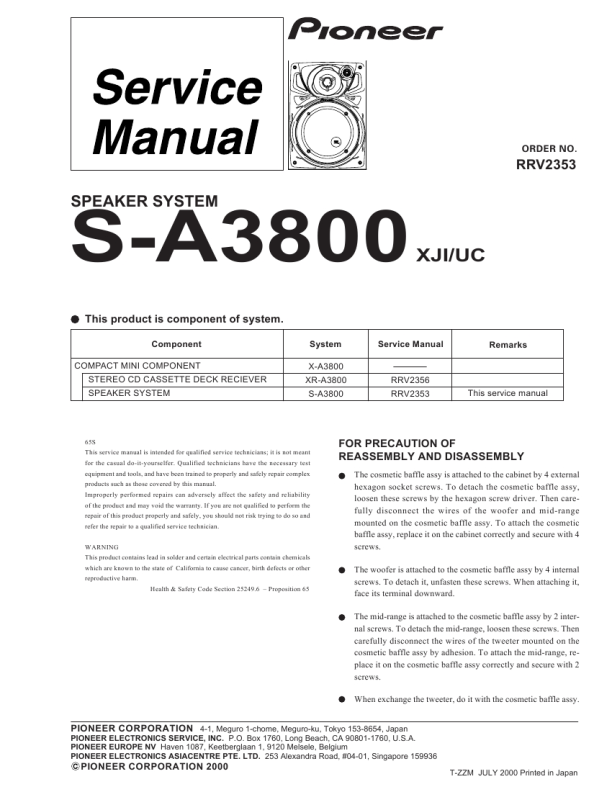

Text excerpt from page 1 (click to view)
ORDER NO.

RRV2353

S-A3800
This product is component of system.
Component COMPACT MINI COMPONENT STEREO CD CASSETTE DECK RECIEVER SPEAKER SYSTEM System X-A3800 XR-A3800 S-A3800
65S This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 � Proposition 65

SPEAKER SYSTEM

XJI/UC

Service Manual

Remarks

RRV2356 RRV2353 This service manual

FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
The cosmetic baffle assy is attached to the cabinet by 4 external hexagon socket screws. To detach the cosmetic baffle assy, loosen these screws by the hexagon screw driver. Then carefully disconnect the wires of the woofer and mid-range mounted on the cosmetic baffle assy. To attach the cosmetic baffle assy, replace it on the cabinet correctly and secure with 4 screws. The woofer is attached to the cosmetic baffle assy by 4 internal screws. To detach it, unfasten these screws. When attaching it, face its terminal downward. The mid-range is attached to the cosmetic baffle assy by 2 internal screws. To detach the mid-range, loosen these screws. Then carefully disconnect the wires of the tweeter mounted on the cosmetic baffle assy by adhesion. To attach the mid-range, replace it on the cosmetic baffle assy correctly and secure with 2 screws. When exchange the tweeter, do it with the cosmetic baffle assy.

4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER CORPORATION

PIONEER CORPORATION 2000

T-ZZM JULY 2000 Printed in Japan
