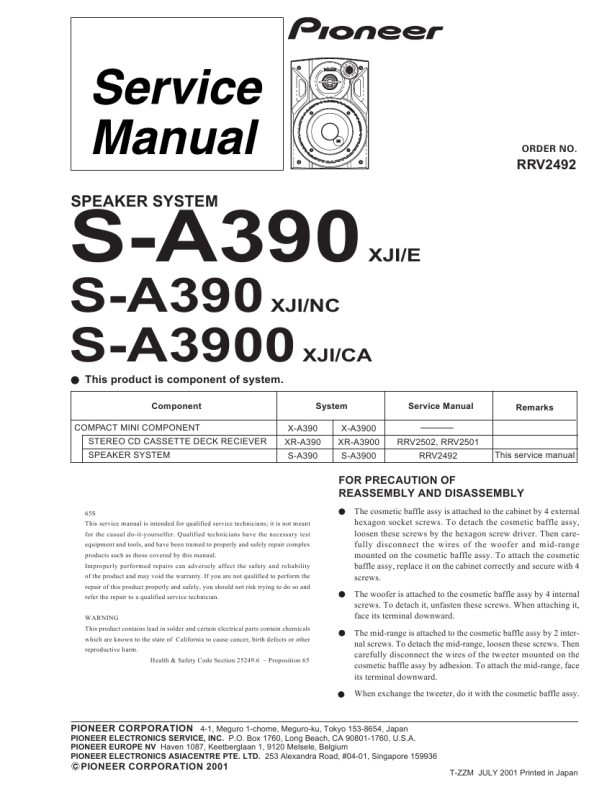

ORDER NO.
RRV2492
S-A390
S-A390 S-A3900
This product is component of system.
Component COMPACT MINI COMPONENT STEREO CD CASSETTE DECK RECIEVER SPEAKER SYSTEM System X-A390 XR-A390 S-A390
SPEAKER SYSTEM
XJI/E
XJI/NC XJI/CA
Service Manual Remarks
X-A3900 XR-A3900 S-A3900 RRV2502, RRV2501 RRV2492 This service manual
FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
65S This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 � Proposition 65
The cosmetic baffle assy is attached to the cabinet by 4 external hexagon socket screws. To detach the cosmetic baffle assy, loosen these screws by the hexagon screw driver. Then carefully disconnect the wires of the woofer and mid-range mounted on the cosmetic baffle assy. To attach the cosmetic baffle assy, replace it on the cabinet correctly and secure with 4 screws. The woofer is attached to the cosmetic baffle assy by 4 internal screws. To detach it, unfasten these screws. When attaching it, face its terminal downward. The mid-range is attached to the cosmetic baffle assy by 2 internal screws. To detach the mid-range, loosen these screws. Then carefully disconnect the wires of the tweeter mounted on the cosmetic baffle assy by adhesion. To attach the mid-range, face its terminal downward. When exchange the tweeter, do it with the cosmetic baffle assy.
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION
PIONEER CORPORATION 2001
T-ZZM JULY 2001 Printed in Japan
|
|
|
> |
|
