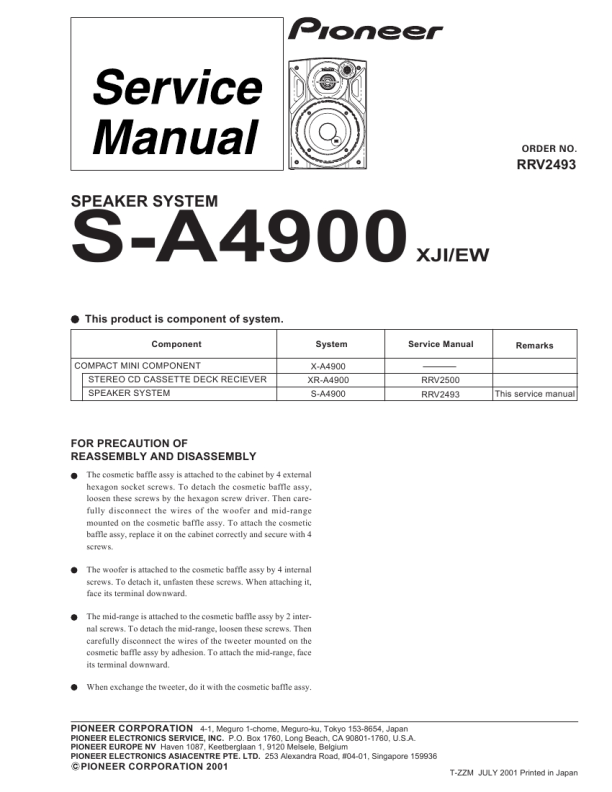

ORDER NO.
RRV2493
S-A4900
This product is component of system.
Component COMPACT MINI COMPONENT STEREO CD CASSETTE DECK RECIEVER SPEAKER SYSTEM System X-A4900 XR-A4900 S-A4900
SPEAKER SYSTEM
XJI/EW
Service Manual
Remarks
RRV2500 RRV2493 This service manual
FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
The cosmetic baffle assy is attached to the cabinet by 4 external hexagon socket screws. To detach the cosmetic baffle assy, loosen these screws by the hexagon screw driver. Then carefully disconnect the wires of the woofer and mid-range mounted on the cosmetic baffle assy. To attach the cosmetic baffle assy, replace it on the cabinet correctly and secure with 4 screws. The woofer is attached to the cosmetic baffle assy by 4 internal screws. To detach it, unfasten these screws. When attaching it, face its terminal downward. The mid-range is attached to the cosmetic baffle assy by 2 internal screws. To detach the mid-range, loosen these screws. Then carefully disconnect the wires of the tweeter mounted on the cosmetic baffle assy by adhesion. To attach the mid-range, face its terminal downward. When exchange the tweeter, do it with the cosmetic baffle assy.
PIONEER CORPORATION
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2001
T-ZZM JULY 2001 Printed in Japan
|
|
|
> |
|
