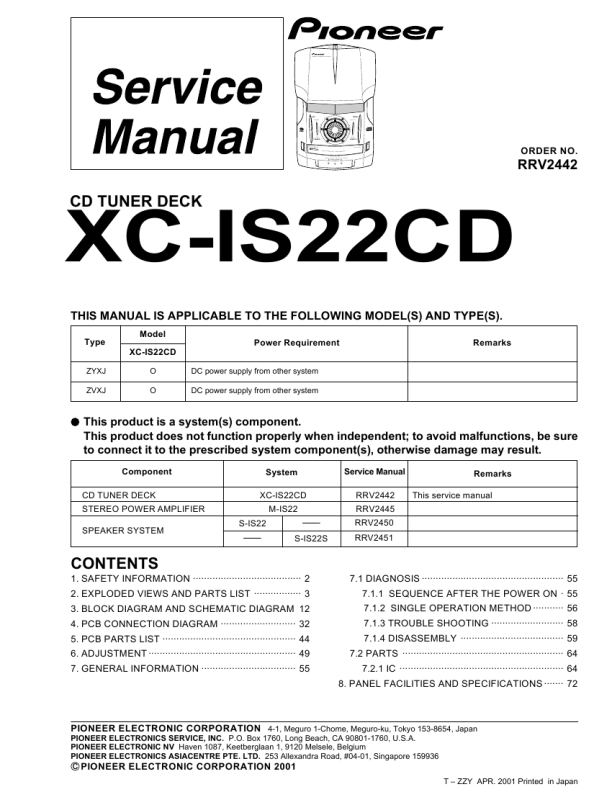

XC-IS22CD
Display 4% 3 2 1 ^
TUNED STEREO RDS B.CUT ASES MONO
5
6
PROGRAM RANDOM kHz REPEAT MHz SRS ONE
7
NR
8 9
$
#
@
!
~
=
-
0
Display window
1 2 3 4 5 6 7 8 9 0 = B.CUT Lights when beat cut 2 is active STEREO Lights when listening to FM stereo radio TUNED Lights when tuned to a radio broadcast RDS Lights when in one of the RDS display or search modes Character display PROGRAM Lights in program play RANDOM Lights in random play REPEAT Lights in repeat play ONE Lights in repeat one-track play NR Lights when Dolby B Noise Reduction is on � Indicates the reverse mode (�, [ or �) TAPE 23 Indicates the direction of tape travel (2 (reverse) or 3 (forward)) REC Lights during tape recording TIMER REC Lights when the record timer is active WAKE UP Lights when the wake up timer is active SLEEP Lights when the sleep timer is active ENHANCE Lights when one of the Enhance modes is on ASES Lights during ASES (Auto Synchro Editing System) recording MONO Lights when FM mono mode is on
~ ! @ # $ % ^
74
|
|
|
> |
|
