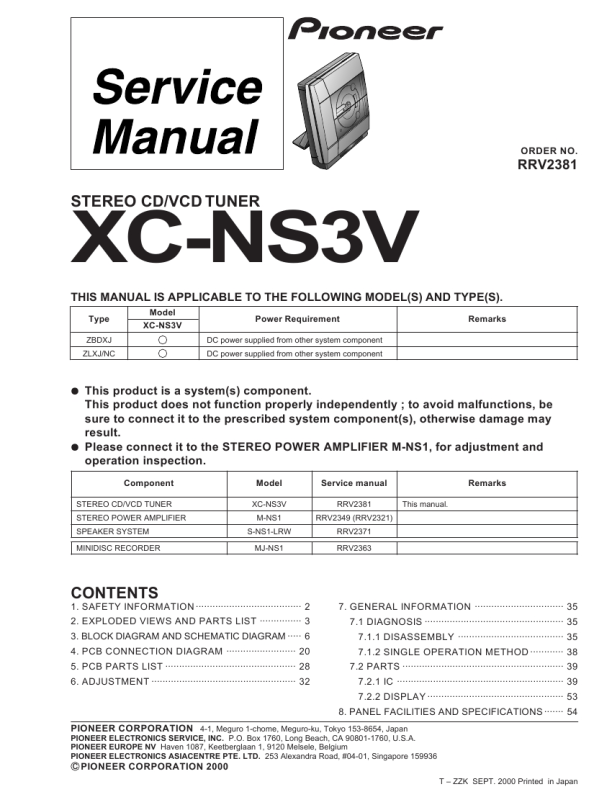

XC-NS3V
1 2 3 4 5
STANDBY/ON � Press to switch the system on or into standby. OPEN/CLOSE � Press to open/close the disc compartment of the CD/VCD player. VOLUME � � Use to adjust the volume. VOLUME + � Use to adjust the volume. MD � Press to switch to MD. If the system is in standby, the power is also switched on. Playback will start if there�s an MD loaded. AUX � Press to switch to a component connected to the auxiliary inputs. If the system is in standby, the power is also switched on. CD � Press to switch to CD/VCD. If the system is in standby, the power is also switched on. Playback will start if there�s a disc loaded.
19 SET/SELECT � Press to make a setting when using the menu system. When playing a VCD featuring Playback Control (PBC), press to select an option from the PBC menu. 20 MENU � Press to access the menu system. 21 SLOW � During VCD playback, press to start slow-motion play. Press again to change the speed. 22 STEP E � During VCD playback, press to pause playback. Press again to advance frame-by-frame. 23 REPEAT � Press to select a repeat mode. 24 PROGRAM � Press to start programming a track playlist. 25 Number/letter buttons � Use for selecting tracks and for naming station presets, MD tracks and discs. 26 CLEAR � Press to clear tracks from the program and clear tracks that have been input with the >10 button. 27 >10 � Use to select track numbers over 10. 28 MARK / 10/0 � Use for symbols and puntuation marks when naming MD tracks or discs. Use as 10 or 0 when selecting track numbers. 29 PBC � Press to switch VCD Playback Control on/ off. 30 TIME SEARCH � Use to jump to a specific point on a VCD. 31 DIGEST � Use to display several still frames of a VCD on-screen for easy navigation of the disc. 32 LAST MEM. � Press to restart a VCD from the place that it was last stopped rather than the beginning of the disc. The following buttons can only be used after you�ve set up the remote to control your TV . 33 TV CHANNEL � � Press to change channels. 34 TV CHANNEL + � Press to change channels. 35 TV � Press to switch the TV on/off. 36 TV/VIDEO � Press to switch the input of the TV. 37 TV VOLUME � � Use to adjust the TV volume. 38 TV VOLUME + � Use to adjust the TV volume.
6
7
TUNER � Press to switch to the tuner. If the system is in standby, the power is also switched on. 9 SOUND � Press to select bass, treble, balance or sub-woofer level (use the + and � buttons to adjust the level). 10 NEXT ¢ + � Use to change menu options; adjust the sound; change the preset station number when listening to the radio; or skip forward tracks on a CD, VCD or MD. 11 DISP/CHARA � Press to change the displayed information (this varies according to the current function). 12 1 � Press to scan backwards on the CD, VCD or MD currently playing. 13 38 � Press to play a CD, VCD or MD. During playback press to pause; press again to restart playback. 14 ¡ � Press to scan forwards on the CD, VCD or MD currently playing. 15 TIMER � Press to access the timer menu for setting the wake-up, sleep and record timers. 16 PREVIOUS 4 � � Use to change menu options; adjust the sound; change the preset station number when listening to the radio; or skip back tracks on a CD, VCD or MD. 17 7 STOP � Press to stop the currently playing CD, VCD or MD. 18 RETURN / CANCEL � Press to escape from within a menu without changing any setting. When playing a VCD featuring Playback Control (PBC), press to return to the PBC menu.
8
56
|
|
|
> |
|
