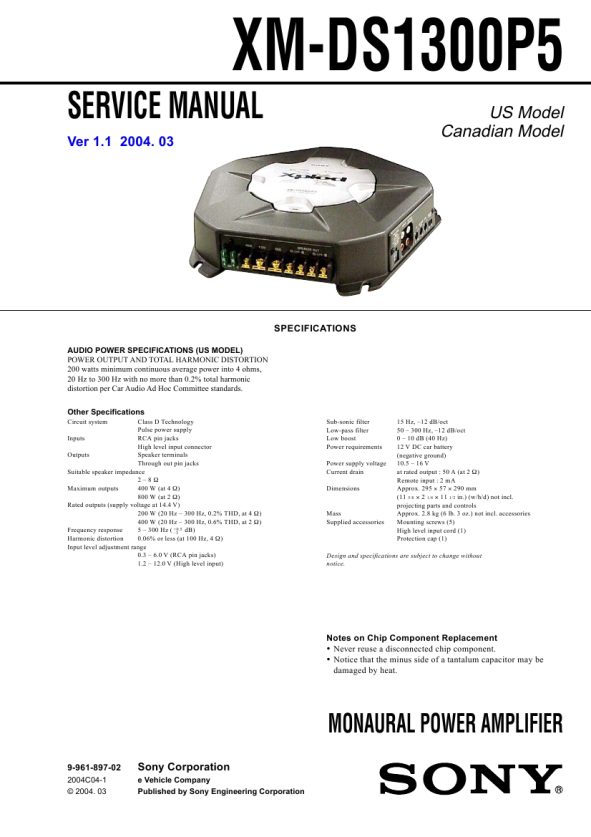

XM-DS1300P5 SECTION 2 DISASSEMBLY
Note : This set can be disassemble according to the following sequence.
SET 2-1. BOTTOM PLATE (Page 6) MAIN BOARD SECTION (Page 7)
2-2.
2-4.
MAIN BOARD (Page 8)
2-5.
LED BOARD (Page 8)
2-3.
DISASSMBLY AND ASSEMBLY OF ORNAMENTAL PLATE (Page 7)
Note : Follow the disassembly procedure in the numerical order given.
2-1. BOTTOM PLATE
1 five screws (+P 3 x 6)
2 three screws
(+P 3 x 6)
3 bottom plate
4 insulating sheet
