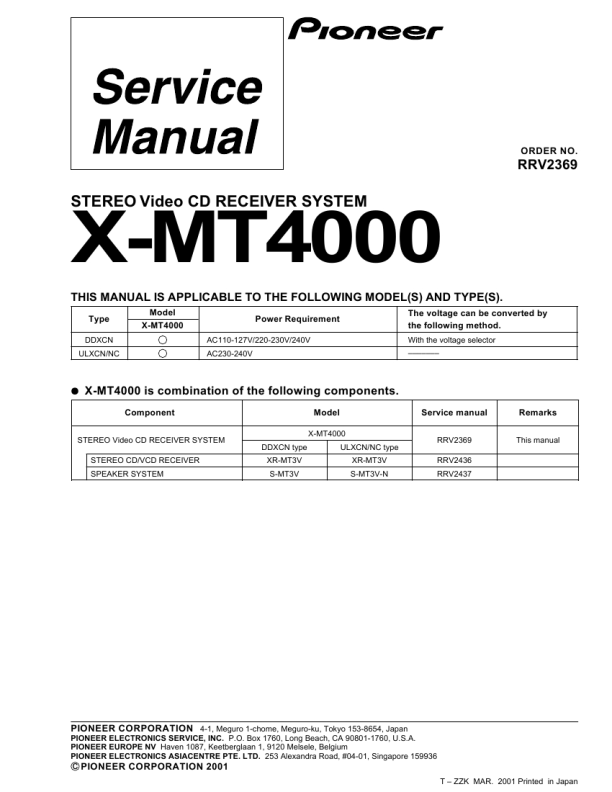

ORDER NO.
RRV2369
STEREO Video CD RECEIVER SYSTEM
X-MT4000
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type
DDXCN ULXCN/NC
Model X-MT4000
AC230-240V
Power Requirement
AC110-127V/220-230V/240V
The voltage can be converted by the following method.
With the voltage selector �������
¶ X-MT4000 is combination of the following components.
Component
STEREO Video CD RECEIVER SYSTEM STEREO CD/VCD RECEIVER SPEAKER SYSTEM
Model
X-MT4000 DDXCN type XR-MT3V S-MT3V ULXCN/NC type XR-MT3V S-MT3V-N
Service manual
RRV2369 RRV2436 RRV2437
Remarks
This manual
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION
c PIONEER CORPORATION 2001
T � ZZK MAR. 2001 Printed in Japan
|
|
 |
> |
|
