LEVER (LDG-A) / (LDG-B)
shaft A shaft B shaft C
shaft A
shaft B
1 Fit the lever (LDG-A) on shafts A � C and install it.
3 type-E stop ring 2.0 2 Fit the lever (LDG-B) on shafts A and B and install it.
GEAR (LDG-FT)
gear (LDG-D) hole
6 polyethylene washer 5 gear (LDG-FT)
hole
lever (LDG-A) gear (LDG-FB)
4 Align hole in the gear (LDG-D) with hole the lever (LDG-A)
1 2 tension spring (LD-2)
2 tension spring (LD-1)
3 Move the lever (LDG-B) in the arrow direction.
� 11 �

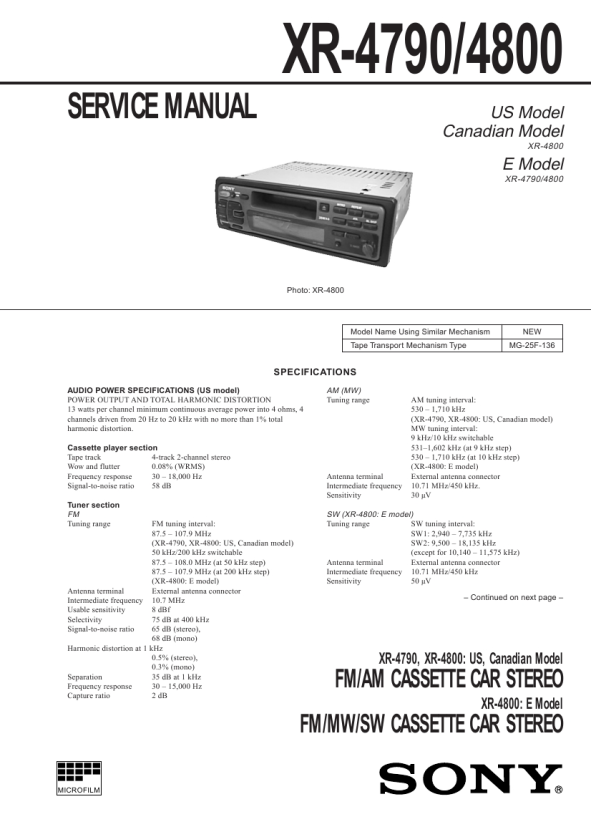

 $4.99 XR-4800 SONY
