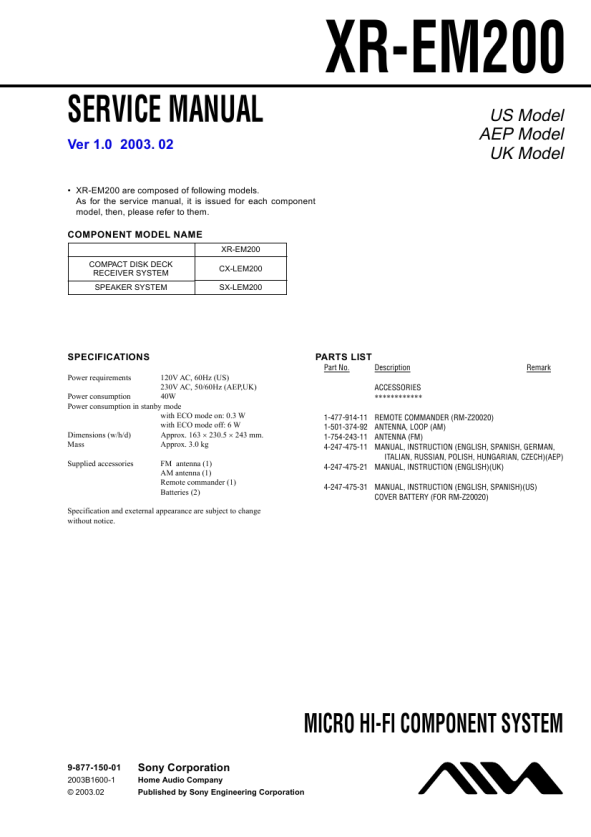

XR-EM200
SERVICE MANUAL
Ver 1.0 2003. 02
� XR-EM200 are composed of following models. As for the service manual, it is issued for each component model, then, please refer to them.
US Model AEP Model UK Model
COMPONENT MODEL NAME
XR-EM200 COMPACT DISK DECK RECEIVER SYSTEM SPEAKER SYSTEM CX-LEM200 SX-LEM200
SPECIFICATIONS
120V AC, 60Hz (US) 230V AC, 50/60Hz (AEP,UK) Power consumption 40W Power consumption in stanby mode with ECO mode on: 0.3 W with ECO mode off: 6 W Dimensions (w/h/d) Approx. 163 � 230.5 � 243 mm. Mass Approx. 3.0 kg Supplied accessories FM antenna (1) AM antenna (1) Remote commander (1) Batteries (2) Power requirements
PARTS LIST
Part No. Description ACCESSORIES ************ 1-477-914-11 REMOTE COMMANDER (RM-Z20020) 1-501-374-92 ANTENNA, LOOP (AM) 1-754-243-11 ANTENNA (FM) 4-247-475-11 MANUAL, INSTRUCTION (ENGLISH, SPANISH, GERMAN, ITALIAN, RUSSIAN, POLISH, HUNGARIAN, CZECH)(AEP) 4-247-475-21 MANUAL, INSTRUCTION (ENGLISH)(UK) 4-247-475-31 MANUAL, INSTRUCTION (ENGLISH, SPANISH)(US) COVER BATTERY (FOR RM-Z20020) Remark
Specification and exeternal appearance are subject to change without notice.
MICRO HI-FI COMPONENT SYSTEM
9-877-150-01
2003B1600-1 © 2003.02
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
