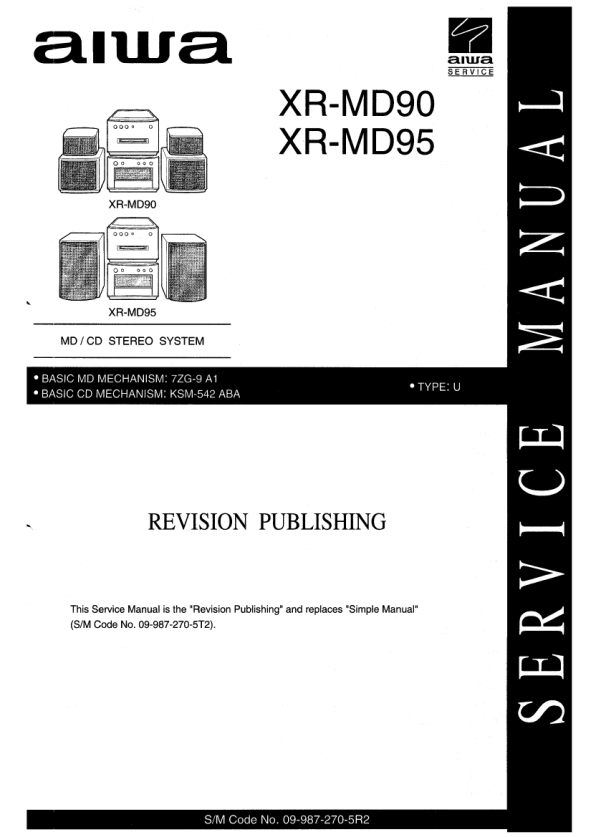

AIWA XRMD95
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of AIWA XRMD95 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 KVX2991A SONY Service Manual by Matteo Vannini;
As Always you can find here manuals even of difficult TV scheme which are scan in almost perfect way.clear and fast!!!!! Great work thanks!
 NEMOS 32 LOEWE Service Manual by Matteo Vannini;
Incredibly clear!!!! Well done, complete and wonderful. It could not better than this!!!!
 PA-770 AKAI Service Manual by Franz Steinberger;
Thank You for fast delivery for the sheme. Everything allright. Thanks & best regards Franz
 SE9000 SAMSUNG Service Manual by Matteo Vannini;
again you did a very good job. It was fast too. Photocopy are really readable and clear
 1081 COMMODORE Service Manual by Marco Antonio Romero Garcia;
Probably it never existed a 1081 official service manual from Commodore, it's look more like a NAPCEC service manual & diagrams compilation of the 1084 series and his variants, like the nap6523, 8cm505, 1084S, 1084P and obviously the 1081. It's more complete than other scans and the quality of the scans also are far superior. It has two circuit diagrams variants of the 1081, mono and stereo versions. It doesn't include a diagram for the Philips CM8500 or CM8501, they look like the 1081 but they are slightly different.

Text excerpt from page 35 (click to view)
3. Laser Power Adjustment
Test point Pickup laser output Jig: Laser power meter Adjusting procedure: 1) Press the �MD EDIT� button three times in the state of �ALL SRV OFF� in order to switch the display to �LASER WRT, 2) Press the II (SET) button once to show the �LASER= $**�. 3) Measure the laser output of the pickup unit using a laser power meter. Adjust the laser output value for 6.8*0.03 mW by pressing the M and+ buttons. After adjustment, press the �ENTER� button. 4) After the adjustment is completed, press the E button to return to the �ALL SRV OFF� state.
Note:

If the laser output exceeds 7.0 mW, the pickup maybe damaged,

4. Auto Sequence Adjustment Tracking AGC Adjustment)

(EFB Adjustment,

IVR Adjustment,

Focus AGC Adjustment

and

Test disc: MDW-60, TGYS-1 When using the MO disc for adjustment 1) Insert the test disc MDW-60. 2) Press the s button to show �ALL SRV OFF on display. 3) Press the �MD MODE button to show �SELECT GRV� on display. 4) When the �MD PLAY� button is pressed, �AUTO ADJ� is displayed. When the adjustment is completed, �DONE (If �FAILED is displayed, it shows that the adjustment has failed and is not performed.) 5) After the adjustment is completed, press the s button to return to the �ALL SRV OFF� state.
Note: 1.

is dkplayed,

2.

Be sure to use the clean disc because the adjustment cannot be ensured if the dirty disc or the scratches on a disc is used. Be sure to use an MO disc that is permitted to record a new data because the MO disc is tested by writing power and a part of the recorded data is erased.

How to check the IVR, EFB, Focus/�I!rackinglSled Gains @ Move the optical pickup to the center track or its around of a disc using the w and the * buttons. @ Press the ® button to show �FOCUS ON!� on display. @ Press the �ENTER� button to switch the mode to �ALL SRV ON. @ Press the s button and press twice the �DISPLAY� button. Check that the indication value on the display �IV$**:EF$VO is within the range as follows below, �**,7 ................. . ................. .. 03-07 �00 ...................................... 09-12 @ Press the �DISPLAY button again. Check that the indication value on the display �Gf**t##sAA� is within the following ranges. �**,, .......... .. ................. ........ 20 to 40
C�##,

@

15 to 35 �M�� . ..................................... 15 to 35 After the checking is completed, press the s button to return to the �ALL SRV OFF� state,

........................................

When using the PIT disc for adjustment 1) Insert the test disc TGYS-1. 2) Press the s button to show �ALL SRV OFF� on display. 3) When the �MD PLAY� button is pressed, �AUTO ADJ� is shown on display, When adjustment is completed, �DONE� is displayed. (If �FAILED is displayed, it shows that the adjustment has failed and is not performed.) 4) After the adjustment is completed, press the s button to return to the �ALL SRV OFF� state. Checking Method of IVR, EFB, FocusiTracking/Sled Gain Perform the same operation as that of the �When using the MO disc for adjustment� and confirm that the values on the display are within the following ranges. �IVY .................................... 13 to 17 . �EFB� .................................... 09 to 12 �Focus gain� .......................... 2A to 45 �Tracking gain� ..................... 20 to 40 �Sledgain�� . ............................2Oto4O

51
