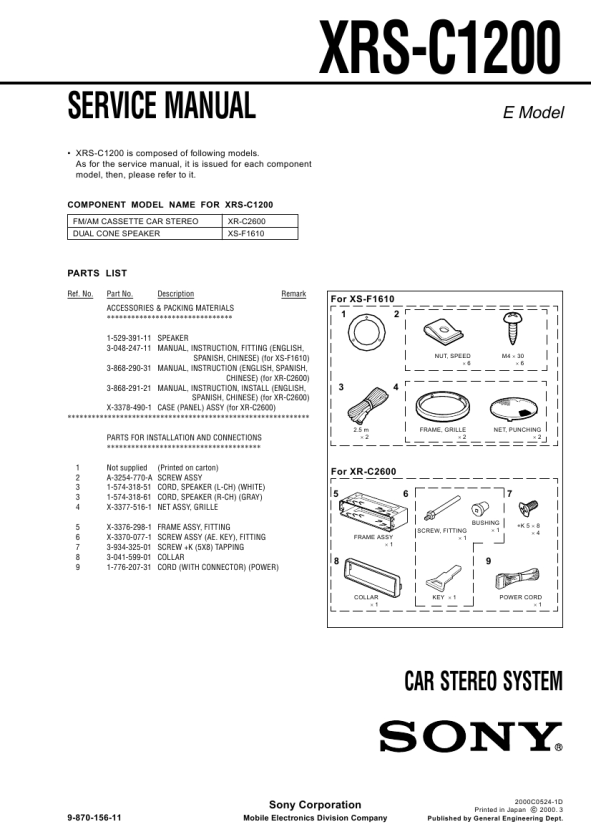

XRS-C1200
SERVICE MANUAL
� XRS-C1200 is composed of following models. As for the service manual, it is issued for each component model, then, please refer to it. COMPONENT MODEL NAME FOR XRS-C1200
FM/AM CASSETTE CAR STEREO DUAL CONE SPEAKER XR-C2600 XS-F1610
E Model
PARTS LIST
Ref. No. Part No. Description Remark
ACCESSORIES & PACKING MATERIALS ******************************* 1-529-391-11 SPEAKER 3-048-247-11 MANUAL, INSTRUCTION, FITTING (ENGLISH, SPANISH, CHINESE) (for XS-F1610) 3-868-290-31 MANUAL, INSTRUCTION (ENGLISH, SPANISH, CHINESE) (for XR-C2600) 3-868-291-21 MANUAL, INSTRUCTION, INSTALL (ENGLISH, SPANISH, CHINESE) (for XR-C2600) X-3378-490-1 CASE (PANEL) ASSY (for XR-C2600) ************************************************************ PARTS FOR INSTALLATION AND CONNECTIONS ************************************** 1 2 3 3 4 5 6 7 8 9 Not supplied A-3254-770-A 1-574-318-51 1-574-318-61 (Printed on carton) SCREW ASSY CORD, SPEAKER (L-CH) (WHITE) CORD, SPEAKER (R-CH) (GRAY)
For XS-F1610 1 2
NUT, SPEED �6
M4 � 30 �6
3
4
2.5 m �2
FRAME, GRILLE �2
NET, PUNCHING �2
For XR-C2600 5 6
BUSHING �1
7
+K 5 � 8 �4
X-3377-516-1 NET ASSY, GRILLE X-3376-298-1 FRAME ASSY, FITTING X-3370-077-1 SCREW ASSY (AE. KEY), FITTING 3-934-325-01 SCREW +K (5X8) TAPPING 3-041-599-01 COLLAR 1-776-207-31 CORD (WITH CONNECTOR) (POWER)
FRAME ASSY �1 SCREW, FITTING �1
8
9
COLLAR �1
KEY � 1
POWER CORD �1
CAR STEREO SYSTEM
Sony Corporation
9-870-156-11
Mobile Electronics Division Company
2000C0524-1D Printed in Japan C 2000. 3 Published by General Engineering Dept.
|
|
|
> |
|
