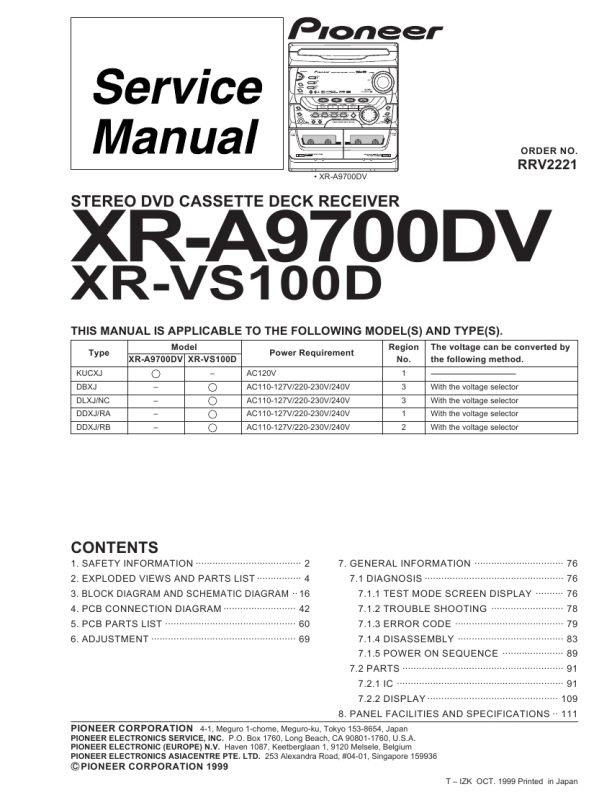

XR-A9700DV, XR-VS100D
Display Section
6
5
4
3
2
1
28 27 26
7 8 9 10
25 24 23 22
11
12
13
14
15
16
17
18 19
20
21
1 2 3 4 5 6 7 8 9 10
Character display ¶ REC � lights when recording to tape Timer � lights when either the record timer or the wake up timer has been set 3 � lights when the current tape direction is forwards Tape I, II � indicates which tape deck is currently selected 2 � lights when the current tape direction is reverse Disc function � lights when the function is set to CD/DVD/Video CD 3 � lights when a disc is playing ASES � lights during automatic recording of a CD Angle � lights during scenes on DVD discs that are recorded with multiple camera angles [RPT (-1)] � highlights during repeat play mode (-1 lights when in single track repeat mode) [PGM] � highlights during program playback mode [RDM] � highlights during random playback mode LAST MEMO � lights when a resume playback point was memorized for the loaded disc
15 16
17 18 19 20 21 22 23 24
11
25
12 13 14
26
96kHz � lights when a DVD disc is playing that contains 96kHz audio CONDITION � lights when a DVD disc is loaded that has had preferences set for language, screen, etc. DOLBY DIGITAL � lights when a Dolby Digital DVD disc is playing Sound morphing / sound level display [EQ] � highlights when EQ is active [SURR.] � highlights when zoom surround is active [P.BASS] � highlights when P.Bass is active B.B. � lights when Bass Blaster is switched on Sleep timer � lights when sleep timer has been set FM mono � lights when the tuner is set to mono FM mode using the remote�s MONO button FM stereo � lights when the tuner is receiving a stereo FM broadcast in auto stereo mode Beat cut 2 indicator � lights when beat cut is switched on for recording AM
