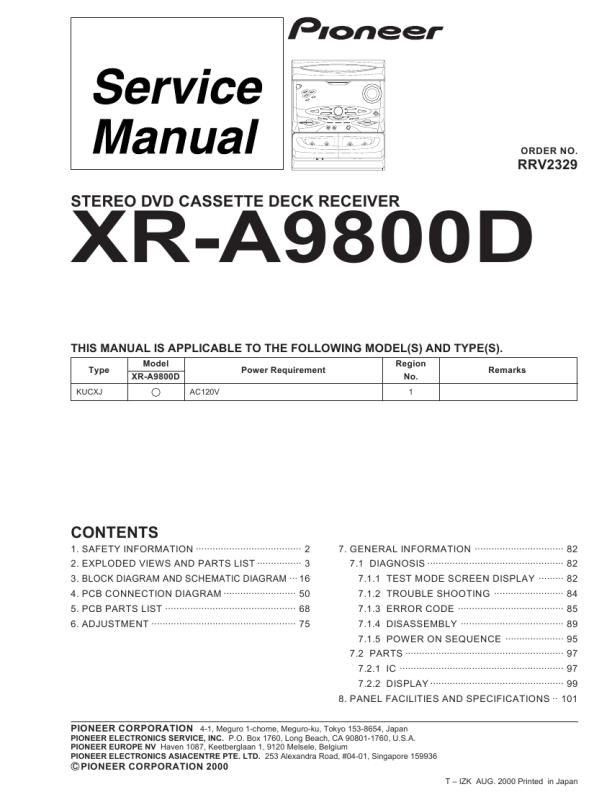

XR-A9800D
14 Release the All Connectors from DVD MAIN Assy. 15 16 15
HOW TO EXCHANGE THE FUSE (PRIMARY ASSY) 1
Remove a Bonnet (Eleven screws).
17 � 2
Unhook
DVD MAIN Assy
18 17
DVD Base CONNECT Assy (6 CH)
$M DVD Mecha Unit
2
19 Return the $M DVD Mecha Unit only to the body. 20 Connect the connectors which disconnecting from the
connectors as step 14 excepting CN6.
�3
3
Remove the PRIMARY Assy.
21 Perform the wiring as follows, and perform the diagnosis.
DVD MAIN Assy Insulation sheet
$M DVD Mecha Unit
CN5104 CN8103
PRIMARY Assy
CONNECT Assy (6 CH)
AF Assy FU1 Put it on the stand.
The two FFC cable of $M DVD Mecha Unit interferes with Loading Tray when it is movable. Please fixes the FFC cable to AF Assy with the tape so as not to interfere.
Parts mounted side
90
|
|
 |
> |
|
|
