SPEAKER DISASSEMBLY INSTRUCTIONS -1/1
TOOLS
(1) Plastic head hammer (2) Cut chisel
2. Insert the CUT CHISEL tip into the gap between front cabinet and rear cabinet. Tap the head of CUT CHISEL with the PLASTIS HEAD HAMMER to remove the front cabinet.
(1) PLASTIC HEAD HAMMER (2) CUT CHISEL
1. Remove the two screws A .
3. Remove the two screws B to remove the tweeter. Remove the four screws C to remove the woofer.
C C B B
A
B
B
A
-56-

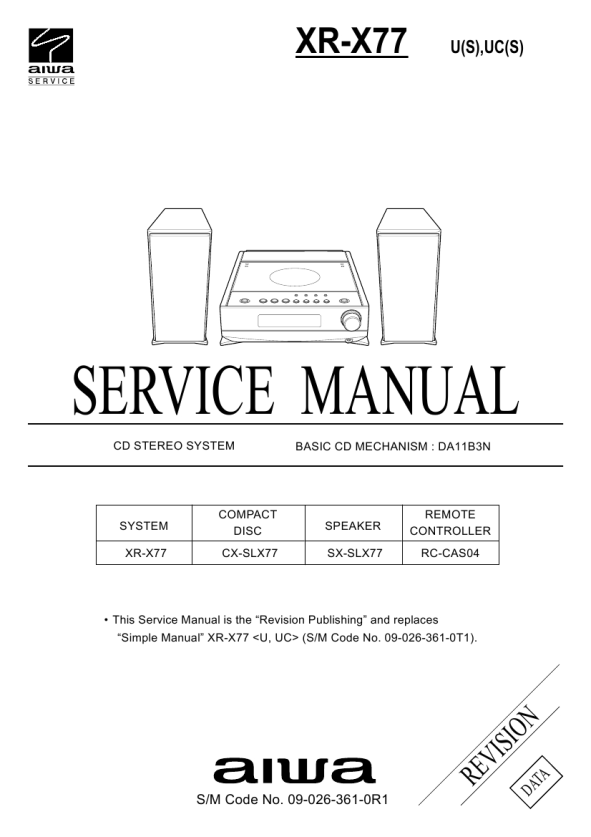

 $4.99 XRX77 AIWA
Owner's Manual Complete owner's manual in digital format. The manual will be available for download as PDF file aft…
|
