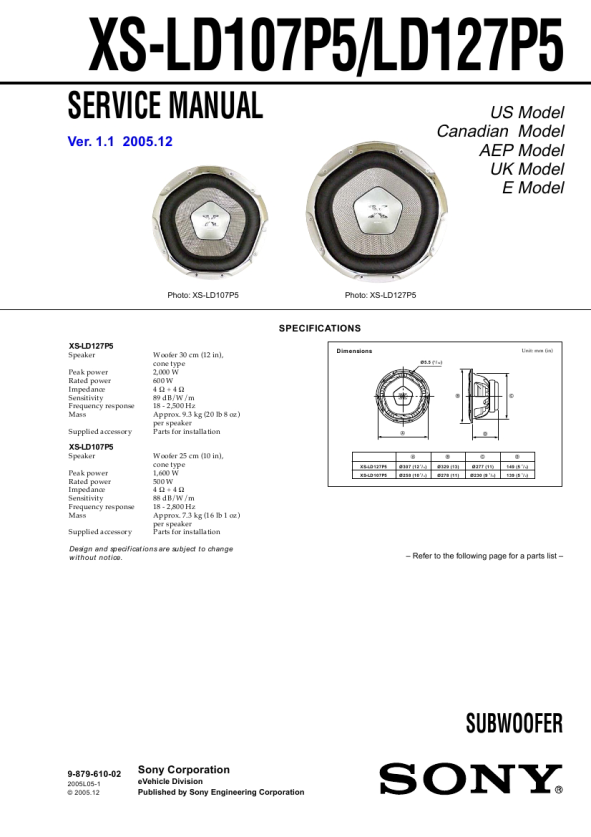

XS-LD107P5/LD127P5
Ver. 1.1
PARTS LIST
Ref. No. Part No. Description Remark
1-825-986-11 SPEAKER (30cm) (XS-LD127P5: US, Canadian, E) 1-825-987-11 SPEAKER (25cm) (XS-LD107P5: US, Canadian, E) 1-826-262-11 SPEAKER (25cm) (XS-LD107P5: AEP, UK) 1-826-263-11 SPEAKER (30cm) (XS-LD127P5: AEP, UK) 2-159-809-12 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, TRADITIONAL CHINESE, SIMPLIFIED CHINESE, ARABIC, PERSIAN, INDONESIAN, THAI, MALAY, KOREAN) (US, Canadian, E) 2-159-809-22 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, GERMAN, SWEDISH, DUTCH, PORTUGUESE, ITALIAN, POLISH, GREEK, RUSSIAN) (AEP, UK) 2-159-811-12 INSTRUCTION (SPEC SHEET) (ENGLISH, FRENCH, SPANISH, TRADITIONAL CHINESE, SIMPLIFIED CHINESE, ARABIC, PERSIAN, INDONESIAN, THAI, MALAY, KOREAN) (US, Canadian, E) 2-159-811-21 INSTRUCTION (SPEC SHEET) (ENGLISH, FRENCH, SPANISH, GERMAN, SWEDISH, DUTCH, PORTUGUESE, ITALIAN, POLISH, GREEK, RUSSIAN) (AEP, UK) 1 1 2 3 3 2-187-039-01 2-187-040-01 7-685-677-19 2-189-455-01 2-189-468-01 TEMPLATE (XS-LD127P5) TEMPLATE (XS-LD107P5) SCREW +BVTP 5X30 TYPE2 N-S PACKING (CORK) (XS-LD127P5) PACKING (CORK) (XS-LD107P5)
1
2
3
TEMPLATE �1
+BVTP 5 � 30 � 10
PACKING (CORK) �1
2
|
|
|
> |
|
