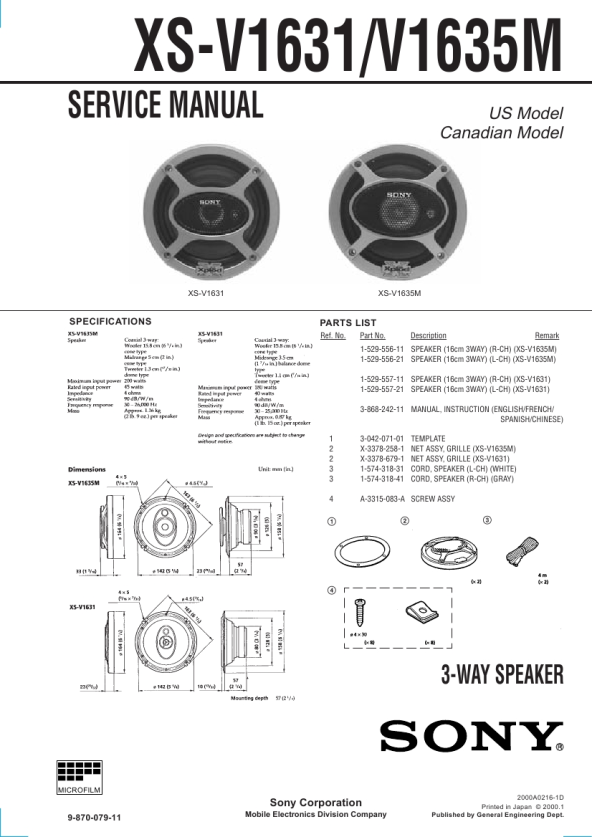

XS-V1631/V1635M
SERVICE MANUAL
US Model Canadian Model
XS-V1631
XS-V1635M
SPECIFICATIONS
PARTS LIST
Ref. No. Part No. Description Remark 1-529-556-11 SPEAKER (16cm 3WAY) (R-CH) (XS-V1635M) 1-529-556-21 SPEAKER (16cm 3WAY) (L-CH) (XS-V1635M) 1-529-557-11 SPEAKER (16cm 3WAY) (R-CH) (XS-V1631) 1-529-557-21 SPEAKER (16cm 3WAY) (L-CH) (XS-V1631) 3-868-242-11 MANUAL, INSTRUCTION (ENGLISH/FRENCH/ SPANISH/CHINESE) 1 2 2 3 3 4 3-042-071-01 X-3378-258-1 X-3378-679-1 1-574-318-31 1-574-318-41 TEMPLATE NET ASSY, GRILLE (XS-V1635M) NET ASSY, GRILLE (XS-V1631) CORD, SPEAKER (L-CH) (WHITE) CORD, SPEAKER (R-CH) (GRAY)
A-3315-083-A SCREW ASSY
1
2
3
4
3-WAY SPEAKER
MICROFILM
Sony Corporation
9-870-079-11
Mobile Electronics Division Company
2000A0216-1D Printed in Japan © 2000.1 Published by General Engineering Dept.
|
