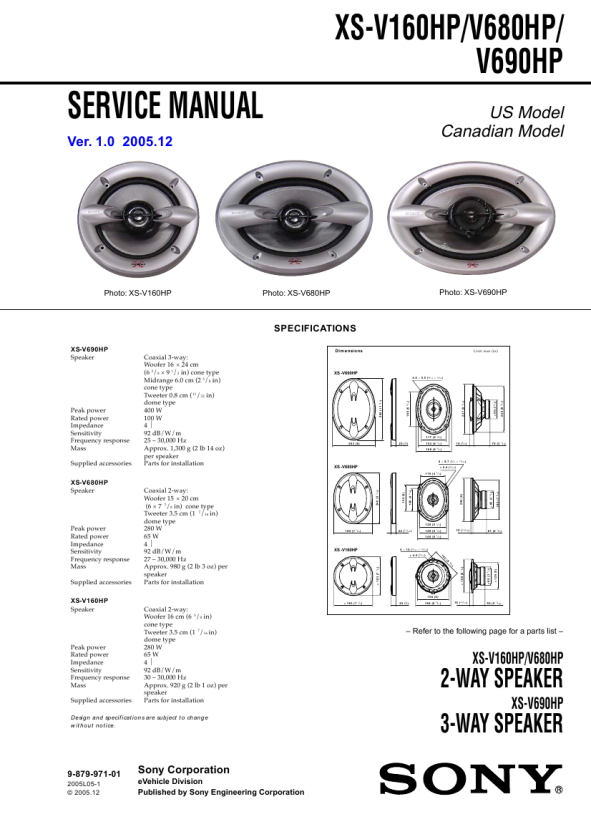

XS-V160HP/V680HP/ V690HP
SERVICE MANUAL
Ver. 1.0 2005.12
US Model Canadian Model
Photo: XS-V160HP
Photo: XS-V680HP
Photo: XS-V690HP
SPECIFICATIONS
XS-V690HP
Speaker Coaxial 3-way: Woofer 16 � 24 cm (6 3/8 � 9 1/2 in) cone type Midrange 6.0 cm (2 3/8 in) cone type Tweeter 0.8 cm ( 11/32 in) dome type 400 W 100 W 4� 92 dB/W/m 25 � 30,000 Hz Approx. 1,300 g (2 lb 14 oz) per speaker Parts for installation
Dimensions
Unit: mm (in)
1 240 (9 /2) ø 183 (7 /4) 1 292 (11 /2)
XS -V690HP
4.5 � 5.5 ( /16 � /32)
3
7
124 (5)
Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories
166 (6 /8) 3 108 (4 /8)
5
117 (4 5/8) 203 (8) 25 (1) 153 (6 1/8) 168 (6 5/8)
( 1 4 2 ) /
1 ø 158 (6 /4) 203 (8) 3 237 (9 /8)
19 (3/4)
8 5
78 (3 1/8)
XS -V680HP
6 � 8.7 (1/4 � 11/32) ø 5.4 (7/32) 118 (4 3/4)
XS-V680HP
Speaker Coaxial 2-way: Woofer 15 � 20 cm (6 � 7 7/8 in) cone type Tweeter 3.5 cm (1 7/16 in) dome type 280 W 65 W 4� 92 dB/W/m 27 � 30,000 Hz Approx. 980 g (2 lb 3 oz) per speaker Parts for installation
3
ø 85 (3 /8)
Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories
182 (7 1/4)
24 (31/32)
128 (5 1/8) 129 (5 1/8) 146 (5 7/8)
10 (13/32)
61 (2 1/2)
XS -V160HP
5 � 10 (7/32 � 13/32) ø 4.5 (3/16)
5
ø 85 (3 /8)
3
XS-V160HP
Speaker Coaxial 2-way: Woofer 16 cm (6 3/8 in) cone type Tweeter 3.5 cm (1 7/16 in) dome type 280 W 65 W 4� 92 dB/W/m 30 � 30,000 Hz Approx. 920 g (2 lb 1 oz) per speaker Parts for installation
ø 183 (7 1/4)
25 (1)
150 (6) 166 (6 5/8 )
16 (21/32)
55 (2 1/4)
� Refer to the following page for a parts list �
Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories
XS-V160HP/V680HP
2-WAY SPEAKER
XS-V690HP
Design and specifications are subject to change without notice.
3-WAY SPEAKER
9-879-971-01
2005L05-1 © 2005.12
Sony Corporation
eVehicle Division Published by Sony Engineering Corporation
ø 126 (5) 3
185 (7 /8)
222 (8 /4)
3
ø 90 (3 /8)
5
|
|
|
> |
|
