SONY XSV6932
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of SONY XSV6932 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 MHCMG110 SONY Service Manual by Muhammad Ahmad;
Thanks for offering this item at such a good price. Proved handy in identifying the part I was looking for my set. Thanks again.
 CV6040 DUAL Service Manual by Gerhard Crossman;
This is the original manufacturers service manual, with detailed info on the circit boards, explosion drawings of all parts in assembly order, and tuning instructions. The only thing missing is the information on the dimensions of the various drive belts. mail me if you need them. gcrossman_at_aol.com
 TH-37PR9U PANASONIC Service Manual by Dennis Jacin;
Ordered service manuel for a hard to find plasma tv - your company made it easy to find and purchase - I will use you again Thanks for your help
 TK3107 KENWOOD Service Manual by chang hws;
This is a high quality manual with clear schematic and components layout diagrams ; with service procedure included.
 KT990D KENWOOD Service Manual by Jon Jensen;
This service manual for the Kenwood KT-990D was reproduced really well ,is very legible and manual is complete.Combined with the low price paid,in the future,I will be checking Owner-Manuals.com any time I need a manual.

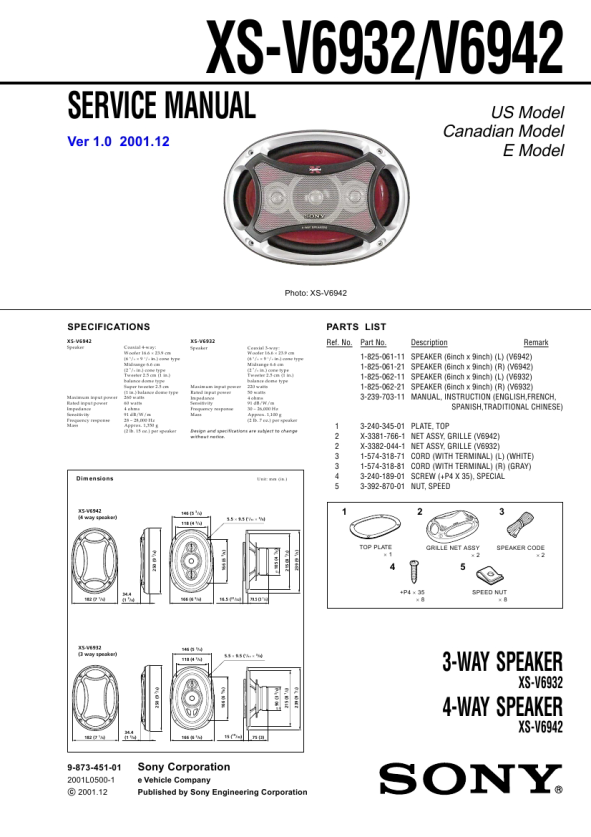

Text excerpt from page 1 (click to view)
XS-V6932/V6942
SERVICE MANUAL
7 250 (9 /8)

Ver 1.0 2001.12

US Model Canadian Model E Model

Photo: XS-V6942

SPECIFICATIONS
XS-V6942
Speaker Coaxial 4-way: Woofer 16.6 � 23.9 cm (6 5/8 � 9 1/2 in.) cone type Midrange 6.6 cm (2 5/8 in.) cone type Tweeter 2.5 cm (1 in.) balance dome type Super tweeter 2.5 cm (1 in.) balance dome type 260 watts 60 watts 4 ohms 91 dB/W/m 28 � 28,000 Hz Approx. 1,350 g (2 lb. 15 oz.) per speaker

1

PARTS LIST
XS-V6932
Speaker Coaxial 3-way: Woofer 16.6 � 23.9 cm (6 5/8 � 9 1/2 in.) cone type Midrange 6.6 cm (2 5/8 in.) cone type Tweeter 2.5 cm (1 in.) balance dome type 220 watts 50 watts 4 ohms 91 dB/W/m 30 � 26,000 Hz Approx. 1,100 g (2 lb. 7 oz.) per speaker

Ref. No. Part No.

Description

Remark

1-825-061-11 SPEAKER (6inch x 9inch) (L) (V6942) 1-825-061-21 SPEAKER (6inch x 9inch) (R) (V6942) 1-825-062-11 SPEAKER (6inch x 9inch) (L) (V6932) 1-825-062-21 SPEAKER (6inch x 9inch) (R) (V6932) 3-239-703-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH, SPANISH,TRADITIONAL CHINESE) 1 2 2 3 3 4 5 3-240-345-01 X-3381-766-1 X-3382-044-1 1-574-318-71 1-574-318-81 3-240-189-01 3-392-870-01 PLATE, TOP NET ASSY, GRILLE (V6942) NET ASSY, GRILLE (V6932) CORD (WITH TERMINAL) (L) (WHITE) CORD (WITH TERMINAL) (R) (GRAY) SCREW (+P4 X 35), SPECIAL NUT, SPEED

Maximum input power Rated input power Impedance Sensitivity Frequency response Mass

Maximum input power Rated input power Impedance Sensitivity Frequency response Mass

Design and specifications are subject to change without notice.

Dimensions

Unit: mm (in.)

XS-V6942 (4 way speaker)

146 (5 3/4) 5.5 � 9.5 (7/32 � 3/8) 118 (4
3/4)

1

2

3

TOP PLATE �1

GRILLE NET ASSY �2

SPEAKER CODE �2

7

4
34.4 182 (7 1/4) (1 3/8) 166 (6 5/8) 16.5 (21/32) 79.5 (3 1/4)

5
+P4 � 35 �8 SPEED NUT �8

XS-V6932 (3 way speaker)

146 (5 3/4) 5.5 � 9.5 (7/32 � 3/8) 118 (4 3/4)

3-WAY SPEAKER
XS-V6932
166 (6 5 /8)
5 1 90 (3 /8) ø 105 (4 /4) 1

250 (9 /8)

239 (9 /2)

4-WAY SPEAKER
XS-V6942

182 (7 1/4)

34.4 (1 3/8)

166 (6 5/8)

15 (19/32)

75 (3)

9-873-451-01
2001L0500-1 C 2001.12

Sony Corporation
e Vehicle Company Published by Sony Engineering Corporation

215 (8 1 /2)
