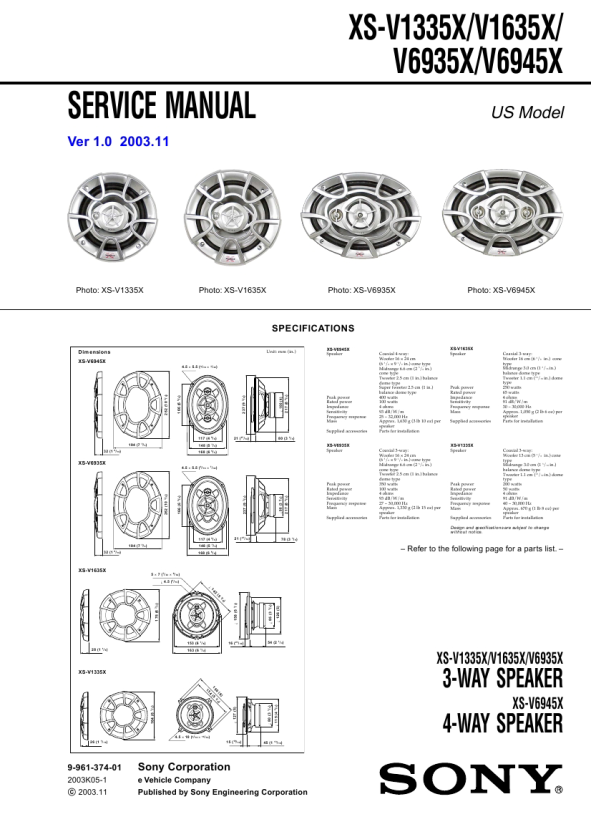

XS-V1335X/V1635X/ V6935X/V6945X
SERVICE MANUAL
Ver 1.0 2003.11
US Model
Photo: XS-V1335X
Photo: XS-V1635X
Photo: XS-V6935X
Photo: XS-V6945X
SPECIFICATIONS
Dimensions XS-V6945X
4.5 � 5.5 (3/16 � 7/32)
Unit: mm (in.)
XS-V6945X Speaker
Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories
117 (4 5/8) 194 (7 3/4) 32 (1 6/16) 148 (5 7/8) 168 (6 5/8) 21 (27/32) 80 (3 1/4)
Coaxial 4-way: Woofer 16 � 24 cm (6 3/8 � 9 1/2 in.) cone type Midrange 6.6 cm (2 5/8 in.) cone type Tweeter 2.5 cm (1 in.) balance dome type Super tweeter 2.5 cm (1 in.) balance dome type 400 watts 100 watts 4 ohms 93 dB/W/m 25 � 32,000 Hz Approx. 1,630 g (3 lb 10 oz) per speaker Parts for installation
XS-V1635X Speaker
Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories
Coaxial 3-way: Woofer 16 cm (6 3/8 in.) cone type Midrange 3.0 cm (1 3/16 in.) balance dome type Tweeter 1.1 cm (13/32 in.) dome type 250 watts 65 watts 4 ohms 91 dB/W/m 30 � 30,000 Hz Approx. 1,050 g (2 lb 6 oz) per speaker Parts for installation
XS-V6935X Speaker
XS-V6935X
4.5 � 5.5 (3/16 � 7/32)
237 (9 /8) 237 (9 /8)
90 (3 /8) ¿ 100 (4) 217 (8 /8)
Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories
Coaxial 3-way: Woofer 16 � 24 cm (6 3/8 � 9 1/2 in.) cone type Midrange 6.6 cm (2 5/8 in.) cone type Tweeter 2.5 cm (1 in.) balance dome type 350 watts 100 watts 4 ohms 93 dB/W/m 27 � 30,000 Hz Approx. 1,330 g (2 lb 15 oz) per speaker Parts for installation
XS-V1335X Speaker
Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessories
Coaxial 3-way: Woofer 13 cm (5 1/8 in.) cone type Midrange 3.0 cm (1 3/16 in.) balance dome type Tweeter 1.1 cm (13/32 in.) dome type 200 watts 50 watts 4 ohms 91 dB/W/m 40 � 30,000 Hz Approx. 670 g (1 lb 8 oz) per speaker Parts for installation
3
262 (10 /8)
5
166 (6 /8)
3 3
5
5
Design and specifications are subject to change without notice.
117 (4 5/8) 194 (7 3/4) 32 (1 6/16) 148 (5 7/8) 168 (6 5/8) 21 ( 27/32) 78 (3 1/8)
� Refer to the following page for a parts list. �
XS-V1635X
5 � 7 (7/32 � 9/32) ¿ 4.5 (3/16)
0 / 4 1 ( 12 55
( 3 8 5 ( ) / )
3 8
3
176 (6 /4)
153 (6 1/8) 28 (1 1/8) 163 (6 1/2)
16 (21/32)
54 (2 1/4)
XS-V1335X/V1635X/V6935X
XS-V1335X
3-WAY SPEAKER
1 5
1¿ 34 ) 6
XS-V6945X
1
4.5 � 10 (3/16 � 13/32) 26 (1 1/16) 15 (19/32) 45 (1 13/16)
4-WAY SPEAKER
164 (6 /2)
127 (5) ¿ 158 (6 1 /4)
¿ 80 (3 /4) ¿ 85 (3 3 /8)
9-961-374-01
2003K05-1 C 2003.11
Sony Corporation
e Vehicle Company Published by Sony Engineering Corporation
¿ 115 (4 /8) ¿ 126 (5)
|
|
|
> |
|
