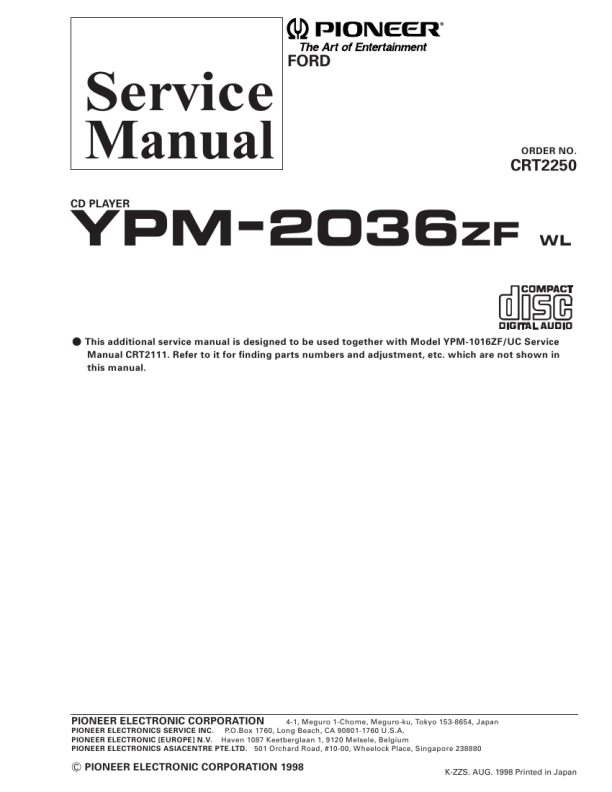

YPM-2036ZF
- CD MECHANISM MODULE SECTION PARTS LIST NOTE:
- Parts marked by �*�are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to � mark on the product are used for disassembly. Mark No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 Description Control Unit Pickup Unit (Service) Screw Screw Screw Screw Screw (M2X3) Screw (M2X2) Screw (M2X5) Screw (M2X3.85) Spring Spring Spring Spring Spring Spring Spring Spring Spring Spring Roller Frame Bracket Bracket Cushion Sheet ����� Gathering PCB Bearing Belt Damper Gear Gear Gear Gear Holder Holder Guide Screw Unit CRG Motor Unit (M2) Motor Unit (M1) Lever Unit Chassis Unit Screw Connector (CN101) Part No. CWX2259 CXX1232 IMS26P050FMC BMZ20P025FMC BMZ20P040FMC BSZ20P040FMC CBA1077 CBA1250 CBA1296 CBA1362 CBH1724 CBH1729 CBH1730 CBH1731 CBH1732 CBH1745 CBH1848 CBH1849 CBH1939 CBL1214 CLA2627 CNC6843 CNC5871 CNC6376 CNM3917 CNM4873 CNX2977 CNR1415 CNT1071 CNV3974 CNV4128 CNV4129 CNV4857 CNV4131 CNV4663 CNV5071 CNV4484 CXA8699 CXB3043 CXB1562 CXB1263 CXB2556 JGZ17P025FZK CKS1953 Mark No. 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 Description Connector (CN901) Connector (CN801) Spring Spring Roller Arm Arm Unit Bracket Load Motor Unit (M3) Screw Arm Roller Gear Unit Screw (M2X5) Frame Damper Spring Spring Spring Spring Arm Lever Spacer Sheet Arm Arm Arm Arm Arm Arm Clamper Screw (M2X2) Connector Arm Gathering PCB Photo-transistor (Q1,2) Elbo Arm Assy Load Motor Assy LO Arm Assy Shaft Guide Arm Assy F Frame Assy Bracket Bracket Part No. CKS2767 CKS2196 CBH1832 CBH1833 CLA2627 CNV4136 CXA8565 CNC6056 CXA8702 JFZ20P025FMC CNV5358 CNV4509 CXA8701 CBA1455 CNC6844 CNV3974 CBH1736 CBH1863 CBH1945 CBL1326 CNC5799 CNC6054 CNM3315 CNM4849 CNV5031 CNV4123 CNV4124 CNV4125 CNV4138 CNV5032 CNV4140 CBA1250 CDE4576 CNC7383 CNX2445 CPT-230S-X CXA8889 CXA8891 CXB2581 CLA3133 CXB1850 CXB1068 CNC7357 CNC7659
*
*
*
