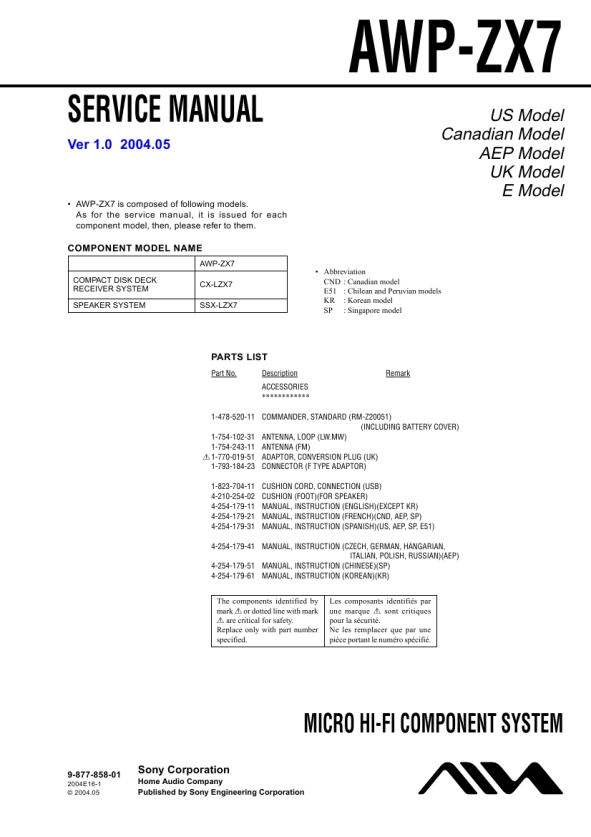

AWP-ZX7
SERVICE MANUAL
Ver 1.0 2004.05
� AWP-ZX7 is composed of following models. As for the service manual, it is issued for each component model, then, please refer to them.
US Model Canadian Model AEP Model UK Model E Model
COMPONENT MODEL NAME
AWP-ZX7 COMPACT DISK DECK RECEIVER SYSTEM SPEAKER SYSTEM CX-LZX7 SSX-LZX7 � Abbreviation CND : Canadian model E51 : Chilean and Peruvian models KR : Korean model SP : Singapore model
PARTS LIST
Part No. Description ACCESSORIES ************ 1-478-520-11 COMMANDER, STANDARD (RM-Z20051) (INCLUDING BATTERY COVER) 1-754-102-31 ANTENNA, LOOP (LW.MW) 1-754-243-11 ANTENNA (FM) 0 1-770-019-51 ADAPTOR, CONVERSION PLUG (UK) 1-793-184-23 CONNECTOR (F TYPE ADAPTOR) 1-823-704-11 4-210-254-02 4-254-179-11 4-254-179-21 4-254-179-31 CUSHION CORD, CONNECTION (USB) CUSHION (FOOT)(FOR SPEAKER) MANUAL, INSTRUCTION (ENGLISH)(EXCEPT KR) MANUAL, INSTRUCTION (FRENCH)(CND, AEP, SP) MANUAL, INSTRUCTION (SPANISH)(US, AEP, SP, E51) Remark
4-254-179-41 MANUAL, INSTRUCTION (CZECH, GERMAN, HANGARIAN, ITALIAN, POLISH, RUSSIAN)(AEP) 4-254-179-51 MANUAL, INSTRUCTION (CHINESE)(SP) 4-254-179-61 MANUAL, INSTRUCTION (KOREAN)(KR) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.
MICRO HI-FI COMPONENT SYSTEM
9-877-858-01
2004E16-1 © 2004.05
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
 $4.99 AWPZX7 AIWA
