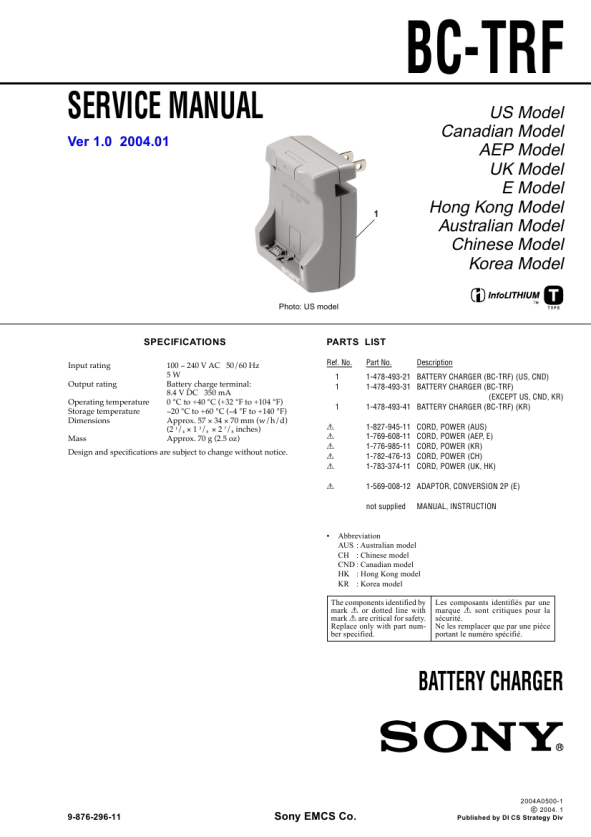

BC-TRF
SERVICE MANUAL
Ver 1.0 2004.01
1
US Model Canadian Model AEP Model UK Model E Model Hong Kong Model Australian Model Chinese Model Korea Model
Photo: US model
SPECIFICATIONS
Input rating Output rating Operating temperature Storage temperature Dimensions Mass 100 � 240 V AC 50/60 Hz 5W Battery charge terminal: 8.4 V DC 350 mA 0 °C to +40 °C (+32 °F to +104 °F) �20 °C to +60 °C (�4 °F to +140 °F) Approx. 57 � 34 � 70 mm (w/h/d) (2 1/4 � 1 3/8 � 2 7/8 inches) Approx. 70 g (2.5 oz)
PARTS LIST
Ref. No. 1 1 1 0 0 0 0 0 0 Part No. Description 1-478-493-21 BATTERY CHARGER (BC-TRF) (US, CND) 1-478-493-31 BATTERY CHARGER (BC-TRF) (EXCEPT US, CND, KR) 1-478-493-41 BATTERY CHARGER (BC-TRF) (KR) 1-827-945-11 1-769-608-11 1-776-985-11 1-782-476-13 1-783-374-11 CORD, POWER (AUS) CORD, POWER (AEP, E) CORD, POWER (KR) CORD, POWER (CH) CORD, POWER (UK, HK)
Design and specifications are subject to change without notice.
1-569-008-12 ADAPTOR, CONVERSION 2P (E) not supplied MANUAL, INSTRUCTION
�
Abbreviation AUS : Australian model CH : Chinese model CND : Canadian model HK : Hong Kong model KR : Korea model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.
BATTERY CHARGER
9-876-296-11
Sony EMCS Co.
2004A0500-1 C 2004. 1 Published by DI CS Strategy Div
|
|
|
> |
|
