IC501, LA4743B
PIN NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 CD 0 0 2.75 4.76 2.74 14.38 2.75 0 2.68 13.17 3.04 3.09 0 3.09 3.04 2.29 2.71 0 2.73 14.38 2.76 4.54 2.72 0 0 TUNER 0 0 2.75 4.76 2.74 14.38 2.75 0 2.68 13.17 3.04 3.09 0 3.09 3.04 2.29 2.71 0 2.73 14.38 2.76 4.54 2.72 0 0 AUX 0 0 2.75 4.76 2.74 14.38 2.75 0 2.68 13.17 3.04 3.09 0 3.09 3.04 2.29 2.71 0 2.73 14.38 2.76 4.54 2.72 0 0
IC701, LC72358N-9A04
PIN NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 CD 2.4 0 0 0 0 DATA 4.95 DATA DATA DATA DATA 0 4.78 0 0 0 0 0 0 DATA 0 0 0 0 0 0 0 0 0 0 4.38 DATA 0 0 0 0 4.82/0 0 4.73 4.73 4.73 TUNER 2.4 0 0 0 0 DATA 4.95 DATA DATA DATA 0 0 0 5.03 0 0 0 4.72 0 DATA 0 0 0 0 0 0 0 0 0 0 4.4 DATA 0 0 0 0 0 0 0 4.72 4.73 AUX 2.4 0 0 0 0 DATA 4.9 DATA DATA DATA 0 0 0 0 0 0 0 0 0 DATA 0 0 0 0 0 0 0 0 0 0 4.4 DATA 0 0 0 0 0 0 0 4.79 4.74 CD-CHANGER 2.32 0 DATA 0 4.66 DATA 4.78 DATA DATA DATA 0 0 0 0 0 0 0 0 0 DATA 4.77 0 0 0 0 0 0 0 0 0 4.39 DATA 0 0 0 0 0 0 0 4.72 4.72
IC641, PST994D
PIN NO. 1 2 3 CD 7.55 0 4.63 FM 7.55 0 4.63 AM 7.55 0 4.63 AUX 7.55 0 4.63 CD-CHANGER 7.55 0 4.63
32 33 34 35 36 37 38 39 40 41
� 21 �

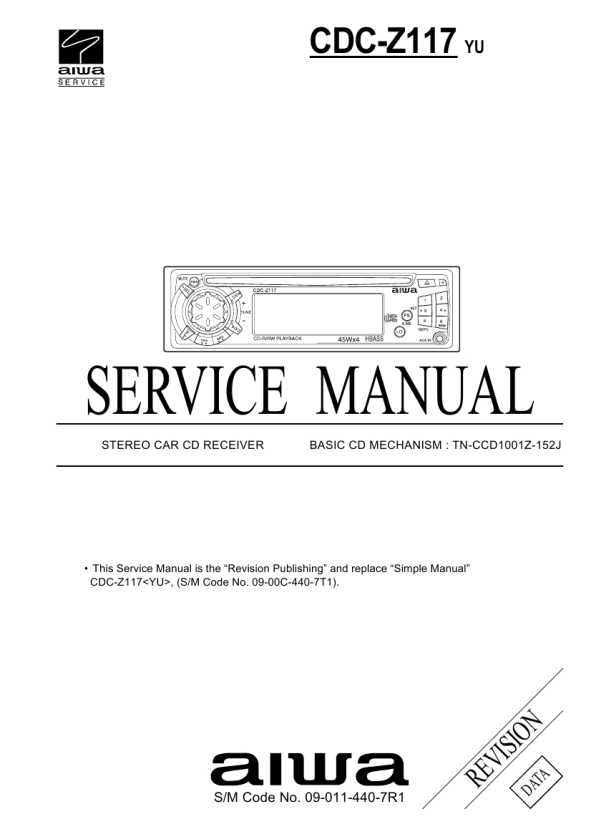

 $4.99 CDCZ117 AIWA
