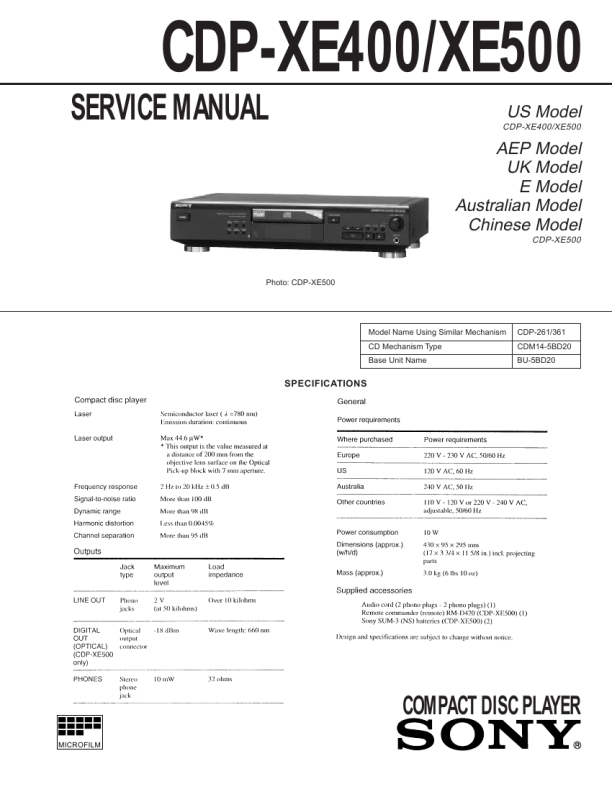

- GENERAL
- Identifying the Parts
- Playing a CD
- DISASSEMBLY
- Front Parts
- Base Unit Block
- ELECTRICAL BLOCK CHECKING
- DIAGRAMS
- IC Pin Functions
- Printed Wiring Board - BD Section
- Schematic Diagram - BD Section
- Printed Wiring Boards - Main Section
- Schematic Diagram - Main Section
- EXPLODED VIEWS
- Case Section
- Back Panel Section
- CD Mechanism Section
- Base Unit Section
- ELECTRICAL PARTS LIST
There are currently no product reviews.
 ;
Impressively thorough. Even the simple operators manual helped me "fix" one of the 2 CD players in the unit. This unit reads CD's from the top so they should be installed in the magazines "upside down" from typical CD players. The CD player service manual helped me unjam a stuck carriage because somebody transported the box laying down loaded with CD's. A little lens cleaning & the player now works well! Thanks for you help at a great price! Joe
;
I was skeptical at first but later found the manual to be good quality for the price. It took a couple hours to receive the email with the download link, well worth the wait. Thanks.
;
very helpful, I could not have cleaned motherboard and replaced the main fan without it
 ;
Good manual, schematics nice and clear with good quality scanning. Woul dhave been nice to have immediate access after purchasing though.
;
I was very glad recieving the service manal from You. Manuals were delivered promptly and were correct as advertised. A complete and very usefull service manual with all details. Thank you!
SECTION 2 DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
2-1. FRONT PANEL
� When removing the front panel assembly on electric power failure, first open the loading block by turning cam with a screwdriver as shown in the figure, next pull out the loading block with hand, and remove the loading panel as shown in the figure, then remove the front panel assembly.
3 Remove loading panel in the arrow direction.
bottom of chassis
1Turn in the direction of the arrow.
2 Pull out disc table.
2-2. BASE UNIT BLOCK
1 Turn the cam to direction of arrow (Counter clockwise) by minus screw driver. 2 Take off the disc table. 3 Remove the yoke bracket. 4 Remove the MD (BU-5BD20) to the direction of arrow.
4 BU-5BD20
3 yoke bracket
1 cam
2 disc table
�6�
|
|
|
> |
|
