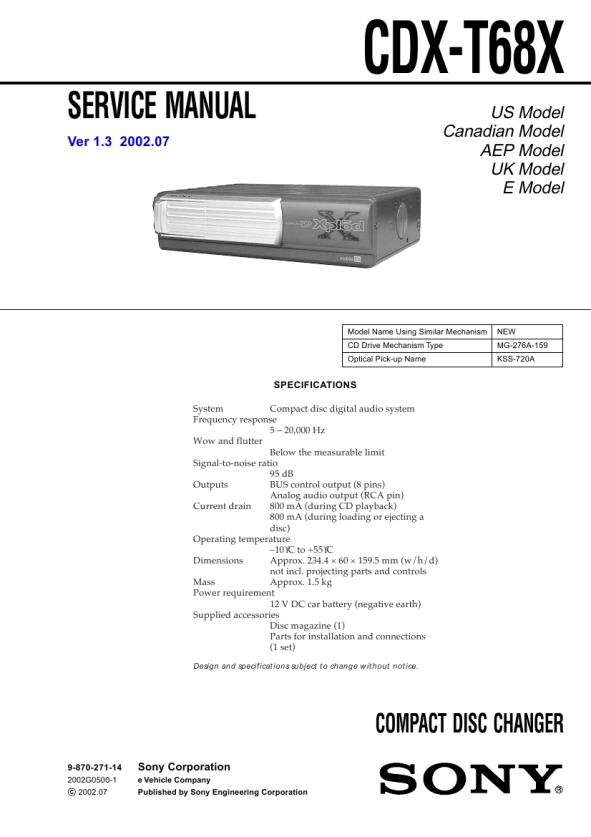

CDX-T68X
REVISION HISTORY
Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. 1.0 1.1 Date 2001.03 2001.05 Description of Revision New Addition of D501, D502 on MAIN board Change of Ref. No. for Main flexible board from 11 to 117 Addition of SPACER (BUTTON EJECT), CUSHION (DAMPER), CUSHION (JACK), SPACER (CASE LOWER), and CUSHION (CHASSIS 6T) Addition of C220 on RF board Change of C303 on MAIN board Change of Part No. for SW102 on RF board Addition of SPACER (TRAY RETAINER), SPACER (DISC RETAINER L) (ECN-CSA04863/CSB02787/CSB02801/CSB02814/CSB02816/CSB02817/CSB02835) Change of MAIN/JACK/RF boards (ECN-CSA04865/CSB02866) Correction of Ref. No. 1 and Ref. No. 2 (SPM-02004)
1.2 1.3
2001.06 2002.07
|
|
|
> |
|
