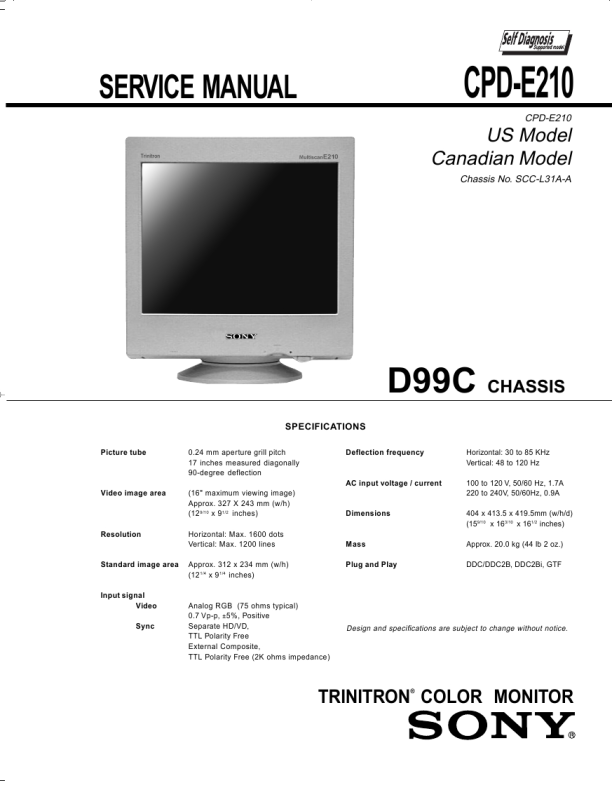

CPD-E210
2-4. PICTURE TUBE REMOVAL
ANODE CAP REMOVAL
WARNING: High voltage remains in the CRT even after the power is disconnected. To avoid electric shock, discharge CRT before attempting to remove the anode cap. Short between anode and CRT coated earth ground strap. NOTE: After removing the anode, short circuit the anode of the picture tube and the anode cap to either the metal chassis, CRT shield, or carbon painted on the CRT.
REMOVAL PROCEDURES
1 Turn up one side of the rubber cap in the direction indicated by arrow a .
2 Use your thumb to pull the rubber cap firmly in the direction indicated by arrow b .
3 When one side of the rubber cap separates from the anode button, the anode cap can be removed by turning the rubber cap and pulling it in the direction of arrow c .
HOW TO HANDLE AN ANODE CAP
1 Do not use sharp objects which may cause damage to the surface of the anode cap. 2 Do not squeeze the rubber covering too hard to avoid damaging the anode cap. A material fitting called a shatter-hook terminal is built into the rubber. 3 Do not force turn the foot of the rubber cover. This may cause the shatter-hook terminal to protrude and damage the rubber.
� 13 �
|
|
|
> |
|
