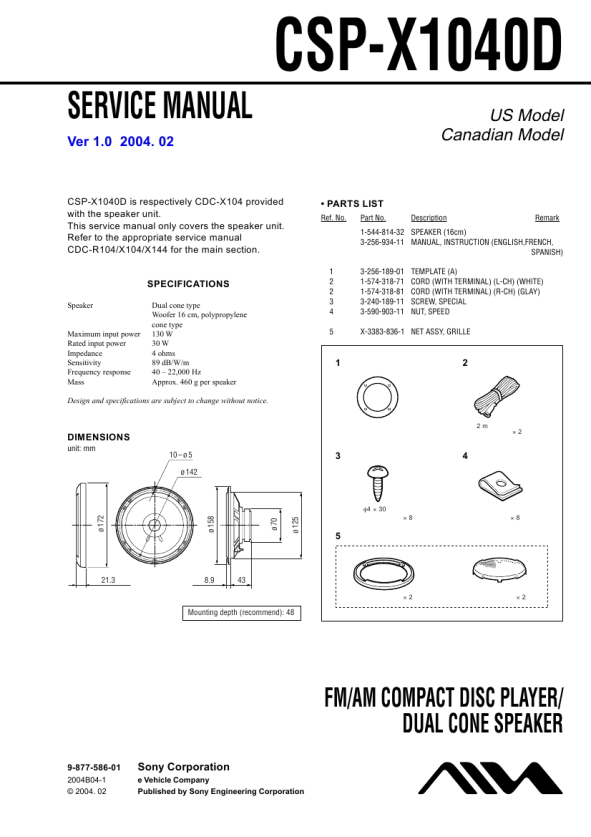

CSP-X1040D
SERVICE MANUAL
Ver 1.0 2004. 02
CSP-X1040D is respectively CDC-X104 provided with the speaker unit. This service manual only covers the speaker unit. Refer to the appropriate service manual CDC-R104/X104/X144 for the main section.
ø 158 ø 70
US Model Canadian Model
� PARTS LIST
Ref. No. Part No. Description Remark 1-544-814-32 SPEAKER (16cm) 3-256-934-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH, SPANISH) 1 2 2 3 4 5 3-256-189-01 1-574-318-71 1-574-318-81 3-240-189-11 3-590-903-11 TEMPLATE (A) CORD (WITH TERMINAL) (L-CH) (WHITE) CORD (WITH TERMINAL) (R-CH) (GLAY) SCREW, SPECIAL NUT, SPEED
SPECIFICATIONS
Speaker Dual cone type Woofer 16 cm, polypropylene cone type 130 W 30 W 4 ohms 89 dB/W/m 40 � 22,000 Hz Approx. 460 g per speaker ø 125 Maximum input power Rated input power Impedance Sensitivity Frequency response Mass
X-3383-836-1 NET ASSY, GRILLE
1
2
Design and specifications are subject to change without notice.
2m
DIMENSIONS
unit: mm
10 � ø 5 ø 142
�2
3
4
�4 � 30 �8 �8
ø 172
5
21.3
8.9
43
�2 �2
Mounting depth (recommend): 48
FM/AM COMPACT DISC PLAYER/ DUAL CONE SPEAKER
9-877-586-01
2004B04-1 © 2004. 02
Sony Corporation
e Vehicle Company Published by Sony Engineering Corporation
|
|
|
> |
|
