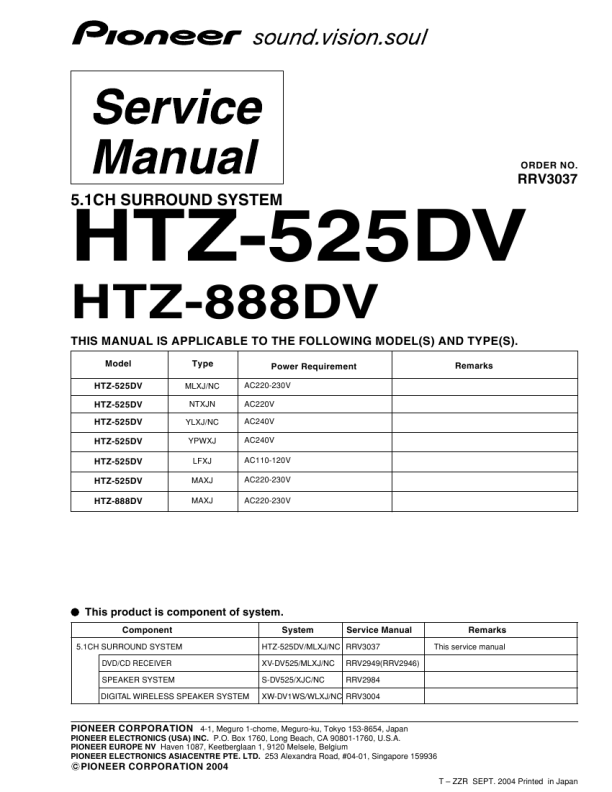

ORDER NO.
RRV3037
5.1CH SURROUND SYSTEM
HTZ-525DV
HTZ-888DV
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model HTZ-525DV HTZ-525DV HTZ-525DV HTZ-525DV HTZ-525DV HTZ-525DV HTZ-888DV Type
MLXJ/NC NTXJN YLXJ/NC YPWXJ LFXJ MAXJ MAXJ
Power Requirement
AC220-230V AC220V AC240V AC240V AC110-120V AC220-230V AC220-230V
Remarks
This product is component of system.
Component
5.1CH SURROUND SYSTEM DVD/CD RECEIVER SPEAKER SYSTEM DIGITAL WIRELESS SPEAKER SYSTEM
System
Service Manual
Remarks
This service manual
HTZ-525DV/MLXJ/NC RRV3037 XV-DV525/MLXJ/NC S-DV525/XJC/NC RRV2949(RRV2946) RRV2984
XW-DV1WS/WLXJ/NC RRV3004
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION
PIONEER CORPORATION 2004
T � ZZR SEPT. 2004 Printed in Japan
|
|
|
> |
|
